Clutch Support Tower: Assembly

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Input Shaft Support Seal Installer 307-578/3 on the clutch support tower and adjust the Input Shaft Support Seal Installer to align the bottom edge of the tool with the top edge of the bottom Teflon® seal groove.

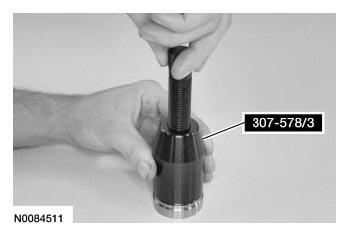

    Fig 1: Installing Input Shaft Support Seal Installer (307-578/3) On Clutch Support Tower
    G06377159Courtesy of FORD MOTOR CO.
  2. Install a new Teflon® seal on the Input Shaft Support Seal Installer 307-578/3.

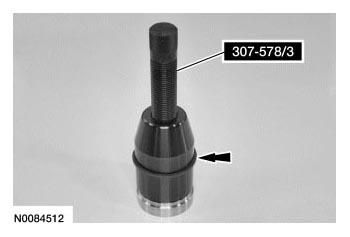

    Fig 2: Locating Teflon Seal On Input Shaft Support Seal Installer (307-578/3)
    G06377160Courtesy of FORD MOTOR CO.
  3. Install the Input Shaft Support Seal Installer 307-578/2 over 307-578/3. Using the Input Shaft Support Seal Installer 307-578/2, slide the Teflon® seal over the clutch support tower and into the groove.

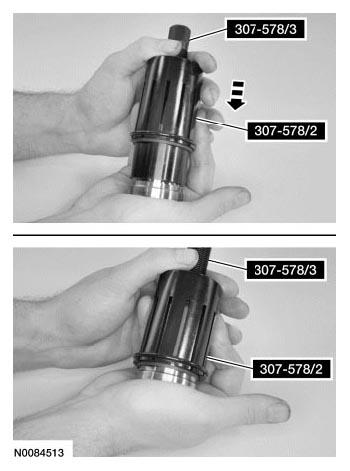

    Fig 3: Sliding Teflon Seal Over Clutch Support Tower
    G06377161Courtesy of FORD MOTOR CO.
  4. Remove the Input Shaft Support Seal Installer 307-578/2 and 307-578/3.
    • Repeat Steps  1 through  4 for the other 3 Teflon® seals.

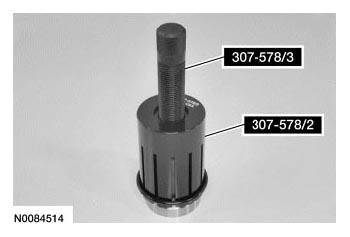

      Fig 4: Identifying Input Shaft Support Seal Installer (307-578/2) And (307-578/3)
      G06377162Courtesy of FORD MOTOR CO.
  5. Install the Input Shaft Support Seal Installer 307-578/1 on the clutch support tower to size the 4 Teflon® seals.

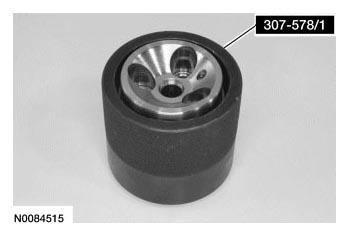

    Fig 5: Identifying Input Shaft Support Seal Installer (307-578/1) On Clutch Support Tower
    G06377163Courtesy of FORD MOTOR CO.
