Neutral Position: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

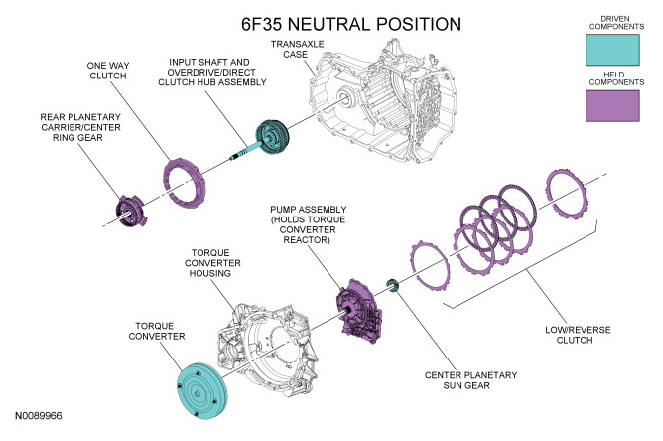

Fig 1: Identifying Transaxle Components - 6F35 Neutral Position
G06376584Courtesy of FORD MOTOR CO.
