Torque Converter Internal Component Exploded View

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

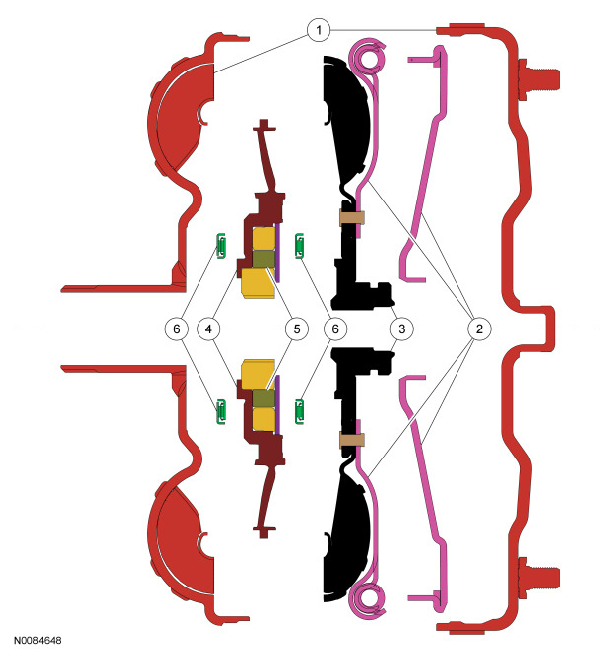

Fig 1: Identifying Torque Converter Internal Components

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Description
1	Impeller and cover assembly
2	Torque Converter Clutch (TCC) and damper assembly
3	Turbine
4	Reactor
5	One-Way Clutch (OWC)
6	Thrust bearings
