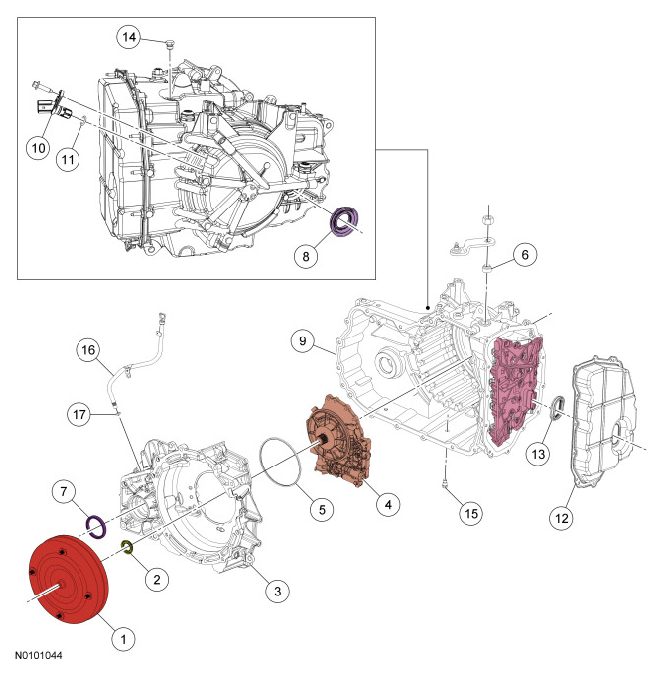

External Sealing Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter |
| 2 | 7A248 | Torque converter hub seal |
| 3 | 7975 | Torque converter housing |
| 4 | 7A103 | Pump assembly |
| 5 | 7A248 | Pump assembly-to-torque converter housing O-ring seal |
| 6 | 7F337 | Manual control shaft seal |
| 7 | 1177 | RH halfshaft seal |
| 8 | 1177 | LH halfshaft seal |
| 9 | 7005 | Transaxle case |
| 10 | 7M101 | Turbine Shaft Speed (TSS) sensor |
| 11 | - | TSS sensor O-ring seal |
| 12 | 7G004 | Main control cover |
| 13 | 7B329 | Main control-to-cover seal |
| 14 | 7H398 | Line pressure tap plug |
| 15 | 7010 | Drain plug |
| 16 | 7A228 | Transmission fluid filler tube |
| 17 | 391308 | Transmission fluid filler tube O-ring seal |
