Bumper - Rear: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

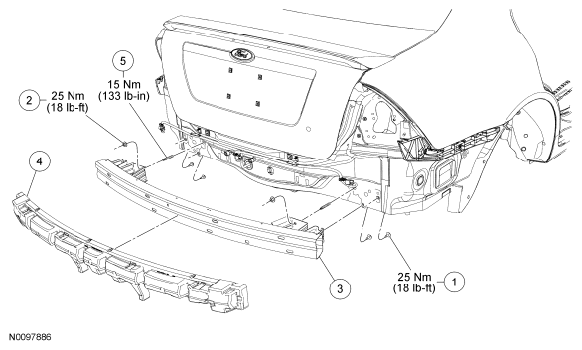

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION TABLE
| Item |
Part Number |
Description |
| 1 |
N811479 |
Rear bumper bolt (4 required) |
| 2 |
W709361 |
Rear bumper nut (2 required) |
| 3 |
17906 |
Rear bumper |
| 4 |
17787 |
Rear bumper isolator |
| 5 |
N808889 |
Rear bumper stud (2 required) |
