Seat Backrest - Front, With Fold Flat: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Optional backrest on passenger seat only.

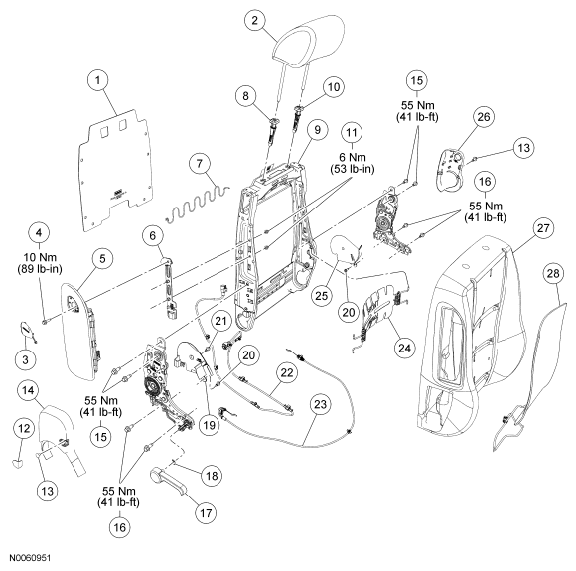

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 60770 | Hard back panel |
| 2 | 611A08 | Head restraint |
| 3 | - | Cover, side air bag module bolt (part of 611D10) (if equipped) |
| 4 | N605892 | Bolt, side air bag module (if equipped) |
| 5 | 611D10 | Side air bag module (if equipped) |
| 6 | 611D78 | Side air bag bracket (if equipped) |
| 7 | 64646 | Upper support spring |
| 8 | 610A18 | Head restraint guide (slave) |
| 9 | 60136 | Backrest frame |
| 10 | 610A16 | Head restraint guide (master) |
| 11 | N620480 | Nuts, side air bag bracket (2 required) (if equipped) |
| 12 | 63174 | RH recliner outboard cover retainer cover |
| 13 | W790016 | Recliner outboard cover retainers (2 required) |
| 14 | 63174 | RH recliner outboard cover |
| 15 | W500632 | Recliner-to-backrest frame bolts (4 required) |
| 16 | W500632 | Recliner-to-cushion frame bolts (4 required) |
| 17 | 61198 | Handle, recliner (if equipped) |
| 18 | - | Spring clip, recliner handle (part of 61198) (if equipped) |
| 19 | 63174 | RH recliner inboard cover |
| 20 | W790016 | Pin-type retainers (2 required) |
| 21 | W790016 | Screw (2 required) |
| 22 | 14K155 | Wiring harness, side air bag (if equipped) |
| 23 | 62648 | Recliner cable |
| 24 | 64842 | Lumbar assembly, static |
| 25 | 63175 | LH recliner inboard cover |
| 26 | 63175 | LH recliner outboard cover |
| 27 | 64810/64416 | Backrest foam pad/backrest trim cover |
| 28 | 14D696 | Backrest heater mat (if equipped) |
