All-Wheel Drive (AWD) Vehicles
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

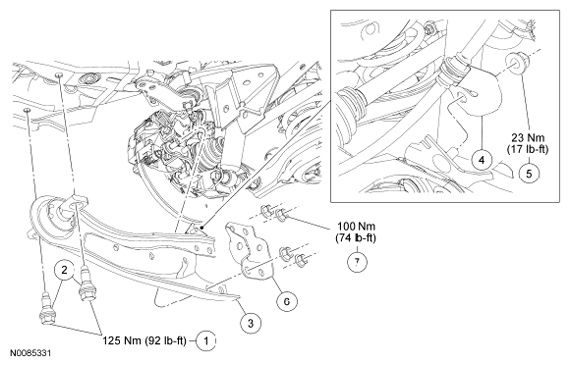

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W711493 | Trailing arm-to-frame bolts (2 required) |
| 2 | 6C028 | Cone washers (2 required) |
| 3 | 5A995 LH/5A994 RH | Trailing arm |
| 4 | - | Wheel speed sensor bracket (part of 2C186 RH/2C187 LH) |
| 5 | W520102 | Wheel speed sensor bracket nut |
| 6 | 5A757 | Trailing arm toe link bracket |
| 7 | 5B860 | Trailing arm-to-knuckle nut (4 required) |
