Transaxle Support Insulator - 3.0L: Material
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

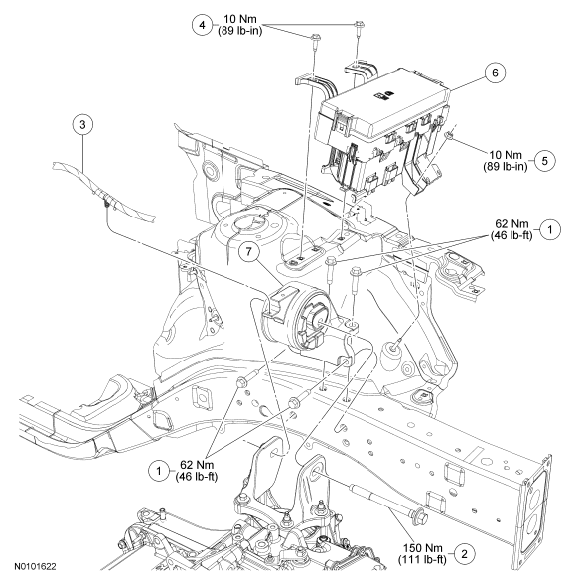

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W709234 | Transaxle support insulator-to-frame rail bolts |
| 2 | W711873 | Transaxle support insulator through bolt |
| 3 | 13A506 | Wiring harness retainer |
| 4 | W702434 | Power Distribution Box (PDB) bolts |
| 5 | N806543 | PDB nut |
| 6 | 180101 | PDB |
| 7 | 6F020 | Transaxle support insulator |
