4th Gear: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

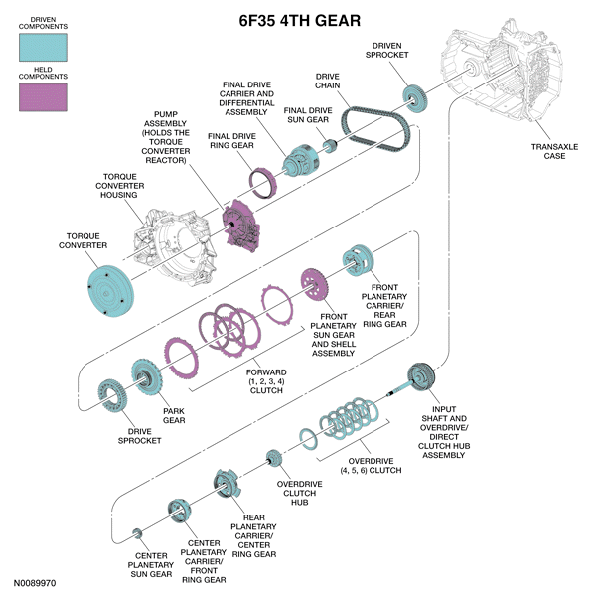

Fig 1: Identifying 4th Gear Components
G06278222Courtesy of FORD MOTOR CO.
