Engine Mount (View 1 of 3)

WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

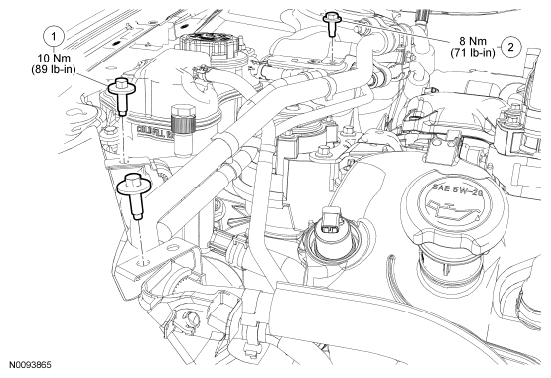

Fig 1: Engine Mount Replacement Components With Torque Specifications (1 Of 3)
G06269812Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 W503924 A/C tube retaining clamp bolt (2 required)
2 W505422 A/C tube retaining clamp bolt
