Cylinder Head
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

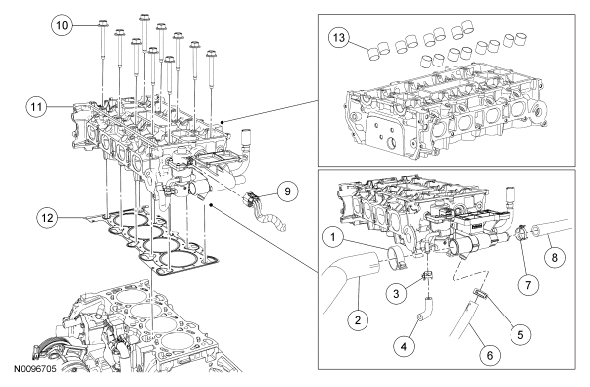

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W527372 | Upper radiator hose clamp |
| 2 | 8B274 | Upper radiator hose |
| 3 | 15161 | EGR coolant tube clamp |
| 4 | - | EGR coolant hose (part of 18C266) |
| 5 | W525958 | Bypass hose clamp |
| 6 | 8548 | Bypass hose |
| 7 | - | Heater hose clamp (part of 18C266) |
| 8 | 18C266 | Heater hose |
| 9 | 14A464 | EGR valve electrical connector (part of 12B637) |
| 10 | 6065 | Cylinder head bolt (10 required) |
| 11 | 6050 | Cylinder head |
| 12 | 6051 | Cylinder head gasket |
| 13 | 6500 | Valve tappet (16 required) |
