Auxiliary Transmission Fluid Cooler: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

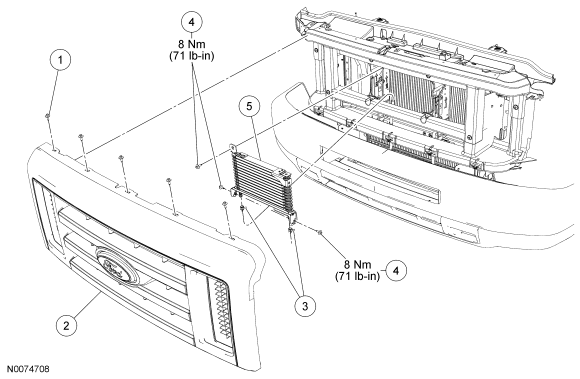

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Radiator grille push pin (5 required) |
| 2 | - | Radiator grille |
| 3 | 8287 | Hose clamps |
| 4 | N606676-S | Oil-to-air (OTA) auxiliary transmission fluid cooler bolts |
| 5 | 7A095 | OTA auxiliary transmission fluid cooler |
