Knock Sensor (KS): Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 6.8L shown, 4.6L and 5.4L similar.

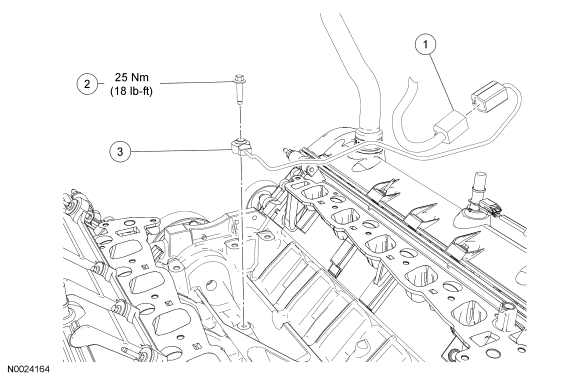

Fig 1: Exploded View Of Knock Sensor KS With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Knock sensor (KS) electrical connector (part of 12B637)
2	W500225	KS bolt
3	12A699	KS
