Engine Mount: Notes
WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 303-D043 | 303-D043-01 or equivalent | |
| Heavy Duty Floor Crane | 014-00071 or equivalent | |
| Lifting Attachment, Engine | 303-D043 (D83T-6000-B) or equivalent |

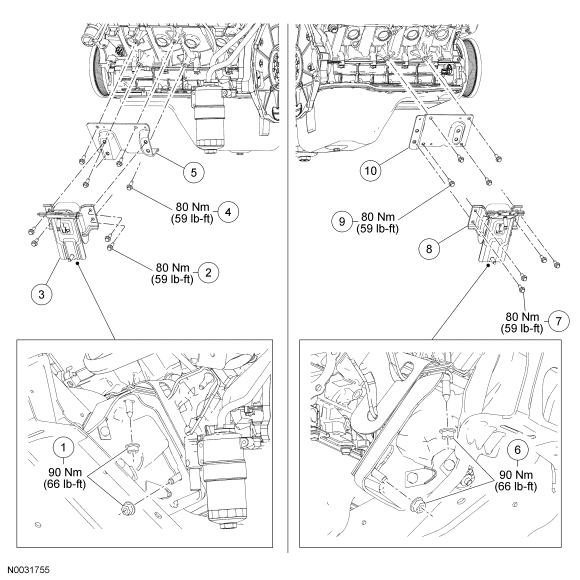

| Item | Part Number | Description |
|---|---|---|
| 1 | N808859 | LH engine mount-to-crossmember nuts (2 required) |
| 2 | - | LH engine mount-to-engine mount plate bolt (4 required) |
| 3 | - | LH engine mount |
| 4 | - | LH engine mount plate-to-cylinder block bolt (4 required) |
| 5 | - | LH engine mount plate |
| 6 | N808859 | RH engine mount-to-crossmember nuts (2 required) |
| 7 | - | RH engine mount-to-engine mount plate bolt (4 required) |
| 8 | - | RH engine mount |
| 9 | - | RH engine mount plate-to-cylinder block bolt (4 required) |
| 10 | - | RH engine mount plate |
