Valve Cover - RH: Installation

WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply instant gel adhesive completely around the gasket groove in the valve cover. Install the new valve cover gasket.
    2. NOTE: If not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
  2. Apply a bead of silicone gasket and sealant in 2 places where the engine front cover meets the cylinder head.
    3. Fig 1: Applying Sealant At Engine Front Cover & Cylinder Head Seam
    G03947588Courtesy of FORD MOTOR CO.
  3. Position the valve cover and the valve cover gasket on the cylinder head and loosely install the fasteners.
    4. Fig 2: Identifying Valve Cover Bolts
    G03886406Courtesy of FORD MOTOR CO.
  4. Tighten the fasteners in the sequence shown.
    • Tighten to 10 Nm (89 lb-in).

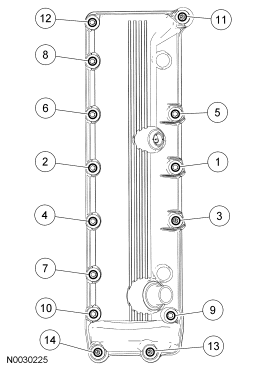

    5. Fig 3: Valve Cover Bolt Torque Sequence
    GF0011754Courtesy of FORD MOTOR CO.
  5. Install the 5 RH ignition coils and the 5 bolts.
    • Tighten to 6 Nm (53 lb-in).
    6. Fig 4: Ignition Coil Retaining Bolt
    G03885163Courtesy of FORD MOTOR CO.
  6. Position the fuel charging wiring harness on to the engine.
    7. NOTE: The red clip must be pushed in after connecting the electrical connector.
  7. Connect the electronic TB electrical connector.
    8. Fig 5: Electronic Throttle Body (TB) Electrical Connector
    G03885272Courtesy of FORD MOTOR CO.
  8. Position the RH fuel charging wiring harness and install the stud bolts.
    • Tighten to 10 Nm (89 lb-in).
    9. Fig 6: Stud Bolts
    G03886339Courtesy of FORD MOTOR CO.
  9. Position back the transmission fluid indicator and tube and install the nut.
    • Tighten to 28 Nm (21 lb-ft).
    10. Fig 7: Transmission Fluid Indicator Tube Nut
    GF0011739Courtesy of FORD MOTOR CO.
  10. Install the transmission fluid indicator and tube support bracket nut.
    • Tighten to 10 Nm (89 lb-in).
    11. Fig 8: Identifying Transmission Fluid Level Indicator Tube And Retaining Nut
    G03886338Courtesy of FORD MOTOR CO.
  11. Connect the RH 5 fuel injector electrical connectors.
    12. Fig 9: Identifying Fuel Injector Electrical Connector
    G03886335Courtesy of FORD MOTOR CO.
  12. Connect the A/C compressor and the CKP sensor connectors and install a tie-strap.
    13. Fig 10: Locating A/C Compressor And Crankshaft Position Sensor Electrical Connectors
    G03885255Courtesy of FORD MOTOR CO.
  13. Position the splash shield and install the push pin retainers.
    14. Fig 11: Identifying Push Pin Retainers And Splash Shield
    G03885266Courtesy of FORD MOTOR CO.
  14. Connect the RH 5 ignition coil electrical connectors.
    15. Fig 12: Identifying Ignition Coil Electrical Connector
    G03886336Courtesy of FORD MOTOR CO.
  15. Connect the wiring harness retainers onto the RH valve cover studs.
    16. Fig 13: Wiring Harness Retainers
    GF0011753Courtesy of FORD MOTOR CO.
  16. Rotate the PCV valve clockwise and install the PCV valve.
    17. Fig 14: Positive Crankcase Ventilation (PCV) Valve
    GF0011752Courtesy of FORD MOTOR CO.
  17. Position the PCV tube and connect the quick connect couplings. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION - GASOLINE AND DIESEL article.
    18. Fig 15: Positive Crankcase Ventilation (PCV) Valve Quick Connect Coupling
    GF0011751Courtesy of FORD MOTOR CO.
  18. Connect the PCV valve electrical connector.
    19. Fig 16: Positive Crankcase Ventilation (PCV) Valve Electrical Connector
    GF0011750Courtesy of FORD MOTOR CO.
  19. Connect the oil fill tube to the RH valve cover.
    20. Fig 17: Locating Oil Fill Tube
    G03886391Courtesy of FORD MOTOR CO.
  20. Install the oil fill tube support bracket bolt.
    • Tighten to 10 Nm (89 lb-in).
    21. Fig 18: Oil Fill Tube Support Bracket Bolt
    G03886392Courtesy of FORD MOTOR CO.
  21. Position the mounting bracket, ground strap and install the nut. Connect the electrical connector retainers to the support bracket.
    • Tighten the nut to 25 Nm (18 lb-ft).
    22. Fig 19: Electrical Connectors And Ground Strap Bracket Retaining Nut
    G03885234Courtesy of FORD MOTOR CO.
  22. Connect the electrical connectors.
    23. Fig 20: Identifying Engine Wiring Harness Electrical Connectors
    G03885233Courtesy of FORD MOTOR CO.
  23. Install the engine air cleaner and the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING article.
  24. Install the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION article.
