Fuel Rail and Fuel Injector - Exploded View, 4.6L
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

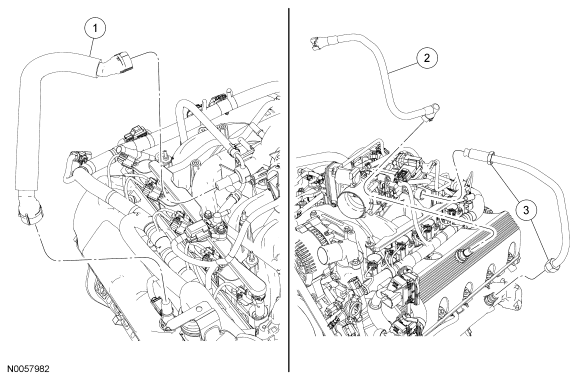

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K817 | PCV tube |
| 2 | - | Crankcase ventilation tube |
| 3 | 9D477 | EGR system tube |

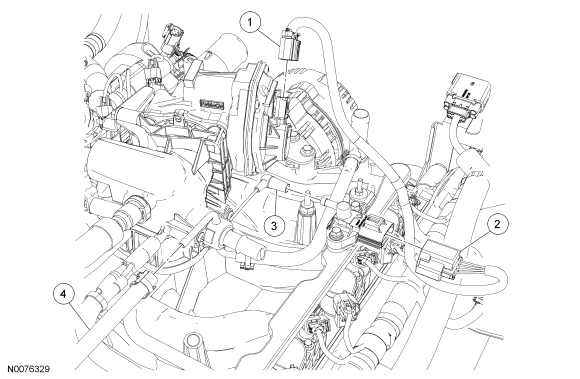

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electronic throttle body (TB) electrical connector (part of 12B637) |
| 2 | - | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 3 | - | Fuel rail pressure and temperature vacuum connector (part of 9E498) |
| 4 | 18465 | Heated PCV coolant hose |

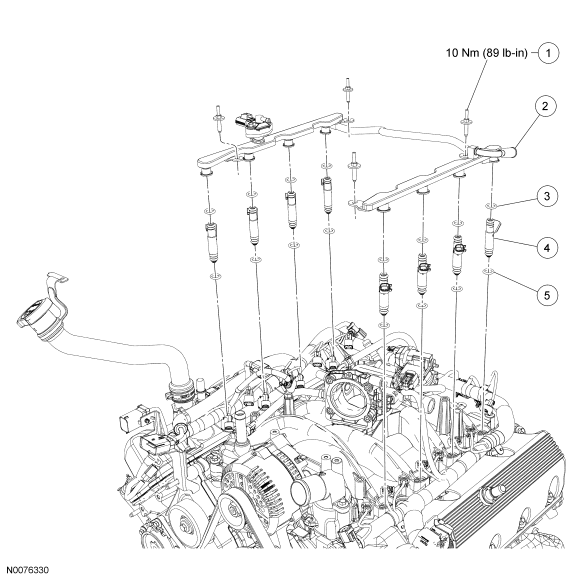

| Item | Part Number | Description |
|---|---|---|
| 1 | N804394 | Fuel rail stud bolt (4 required) |
| 2 | 9F472 | Fuel rail |
| 3 | - | Fuel injector-to-fuel rail O-ring seal (8 required) |
| 4 | 9F593 | Fuel injector (8 required) |
| 5 | - | Fuel injector-to-intake manifold O-ring seal (8 required) |
- For additional information, refer to the procedures.
