Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-

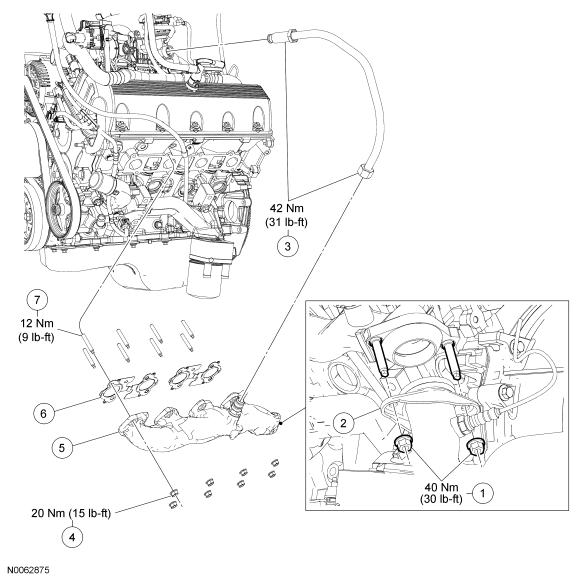

Fig 1: Exploded View Of Left Exhaust Manifold - 4.6L With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Exhaust Y-pipe flange nuts (2 required)
2	5F250	Exhaust Y-pipe flange
3	9D477	EGR system module-to-exhaust manifold tube
4	W701706	Exhaust manifold nut (8 required)
5	9431	Exhaust manifold
6	9Y431	Exhaust manifold gasket (2 required)
7	W707747	Exhaust manifold-to-cylinder head stud (8 required)

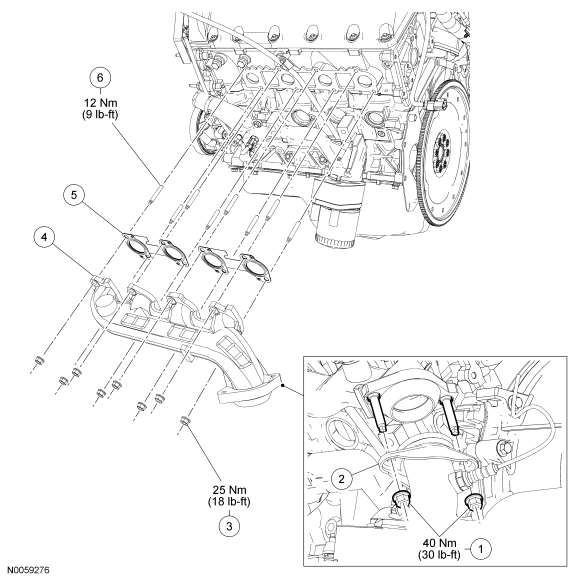

Fig 2: Exploded View Of Left Exhaust Manifold - 5.4L With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Exhaust Y-pipe flange nuts (2 required)
2	5F250	Exhaust Y-pipe flange
3	W701706	Exhaust manifold nut (8 required)
4	9431	Exhaust manifold
5	9Y431	Exhaust manifold gasket (2 required)
6	N811313	Exhaust manifold-to-cylinder head stud (8 required)
