Coolant Pump - 6.0L Diesel: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |
| Motorcraft Metal Surface Prep ZC-31 |
- |

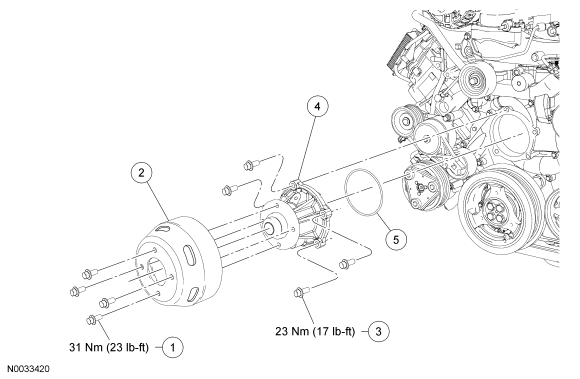

| Item | Part Number | Description |
|---|---|---|
| 1 | N806282 | Coolant pump pulley bolt (4 required) |
| 2 | 8A528 | Coolant pump pulley |
| 3 | N808794 | Coolant pump bolt (4 required) |
| 4 | 8501 | Coolant pump |
| 5 | - | Coolant pump O-ring seal |
