Removal And Installation
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

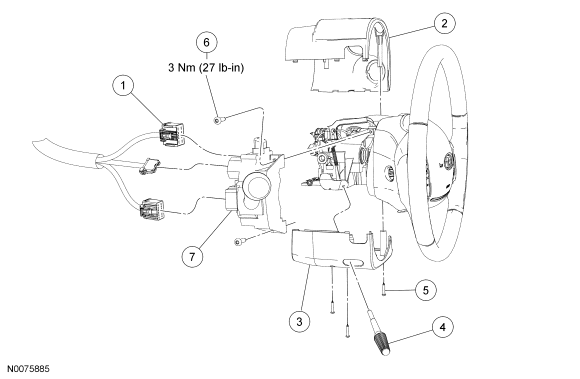

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiring harness, electrical connector (part of 14401) |
| 2 | 3530 | Upper steering column shroud |
| 3 | 3533 | Lower steering column shroud |
| 4 | 3F609 | Tilt release lever/handle |
| 5 | 55929 | Shroud screw (3 required) |
| 6 | 390345 | Multi-function switch screw (2 required) |
| 7 | 13K359 | Multi-function switch |
- Depower the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.
- Remove the ignition switch lock cylinder.
- Insert the ignition key into the lock cylinder and turn the ignition switch to the RUN position.
- Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.
- If equipped, remove the tilt release lever/handle.
- Remove the 3 screws and the upper and lower steering column shrouds.
- Remove the 2 screws and the multi-function switch.
- To install, tighten to 3 Nm (27 lb-in).
- Disconnect the multi-function switch electrical connectors.
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.
Fig 2: Pushing Ignition Lock Cylinder Release Tab While Pulling Ignition Lock Cylinder Out Of Steering Column
