Passive Anti-Theft System (PATS) Transceiver: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

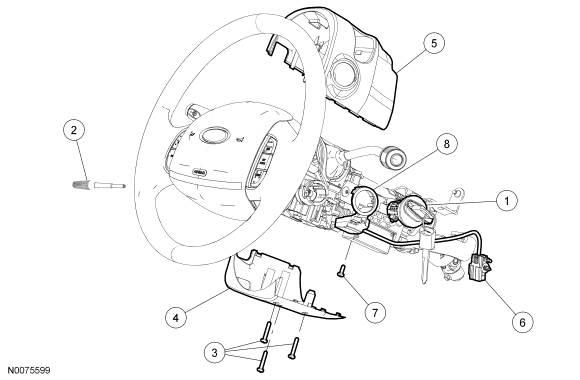

| Item | Part Number | Description |
|---|---|---|
| 1 | 11582 | Ignition lock cylinder |
| 2 | - | Tilt column handle (if equipped) |
| 3 | 391727-S424 | Steering column shroud screws (3 required) |
| 4 | 3K512 | Lower steering column shroud |
| 5 | 3530 | Upper steering column shroud |
| 6 | - | Passive anti-theft system (PATS) transceiver electrical connector (part of 14401) |
| 7 | W710836-S424 | PATS transceiver screw |
| 8 | 15607 | PATS transceiver |
