Removal And Installation

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, remove the sliding door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION article.
    2. NOTE: Use the special tool to install the sliding door latch actuator remote control rivet.
  2. If equipped, remove the door lock actuator rivet.
  3. Disconnect the exterior door handle attaching rod.
  4. Disconnect the door lock cylinder actuating rod.
  5. Disconnect the door lock actuator electrical connector.
  6. Remove the 3 inner sliding door remote control bolts.
    • To install, tighten to 12 Nm (9 lb-ft).
  7. Remove the 3 front sliding door remote control bolts.
    • To install, tighten to 10 Nm (89 lb-in).
  8. Disconnect the 2 door latch actuating cables.

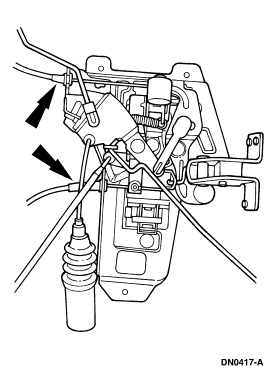

    9. Fig 1: Door Latch Actuating Cables
    GF0011467Courtesy of FORD MOTOR CO.
  9. To install, reverse the removal procedure.
