Selector Lever Bezel: Removal
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

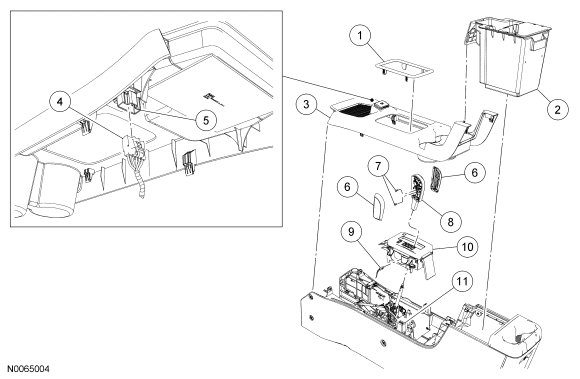

| Item | Part Number | Description |
|---|---|---|
| 1 | 78061A16 | Trim ring |
| 2 | 78044H06 | Center console compartment tray |
| 3 | 78045A76 | Center console finish panel |
| 4 | 14A464 | Power outlet electrical connector |
| 5 | 19G247 | Power outlet |
| 6 | - | Selector lever knob trim covers (part of 7L010) |
| 7 | - | Selector lever knob screws (part of 7L010) |
| 8 | 7L010 | Selector lever knob |
| 9 | 7C453 | Selector lever bezel light socket |
| 10 | 7E034 | Selector lever bezel |
| 11 | 7K004 | Selector lever assembly |
- Place the selector lever in the (D) position.
- Gently pry up to remove the upper selector lever trim ring.
- Lift the center console lid and remove the center console compartment tray.
- Remove the top finish panel from the center console.
- Disconnect the power outlet electrical connector.
- Remove the selector lever knob trim covers by carefully prying out on the bottom front corners and then pry out on the top front corner and remove the covers.
- Remove the 2 selector lever knob screws and remove the selector lever knob.
- Remove the selector lever bezel light from the selector lever bezel.
- Release the tabs and remove the selector lever bezel from the selector lever.
NOTE:
Selector lever removed for clarity.
