Steering Linkage
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

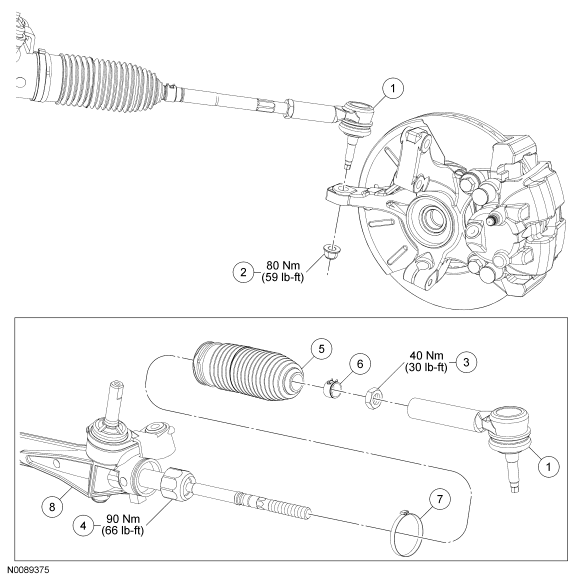

| Item | Part Number | Description |
|---|---|---|
| 1 | 3289 | Outer tie-rod end |
| 2 | W712338 | Outer tie-rod nut |
| 3 | W700318 | Tie-rod end jam nut |
| 4 | 3280 | Inner tie-rod end |
| 5 | 3332A | Steering gear boot kit |
| 6 | - | Steering gear boot clamp, outer (part of 3332A) |
| 7 | - | Steering gear boot clamp, inner (part of 3332A) |
| 8 | 3A500 | Steering gear |
- For additional information, refer to the procedures in this article.
