Engine Ignition
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

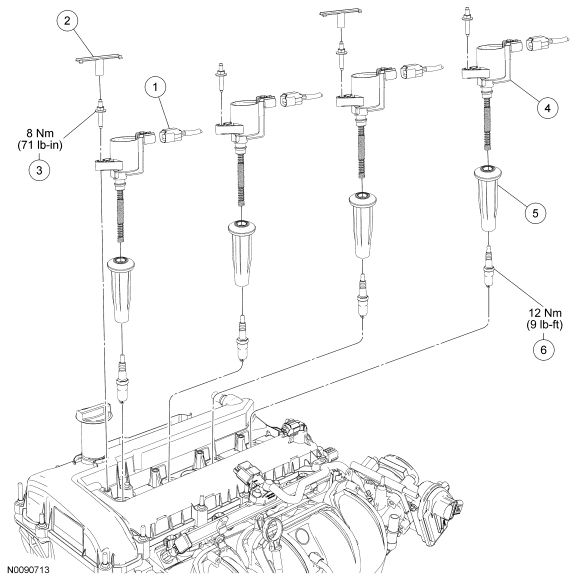

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Ignition coil-on-plug electrical connector (4 required) |
| 2 | 14A163 | Wire harness retainer (2 required) (part of 12B637) |
| 3 | W705310 | Ignition coil-to-valve cover stud bolt (4 required) |
| 4 | 12A366 | Ignition coil (4 required) |
| 5 | 12A402 | Coil boot (4 required) |
| 6 | 12405 | Spark plug (4 required) |
- For additional information, refer to the procedures in this article.
