Variable Assist Steering

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

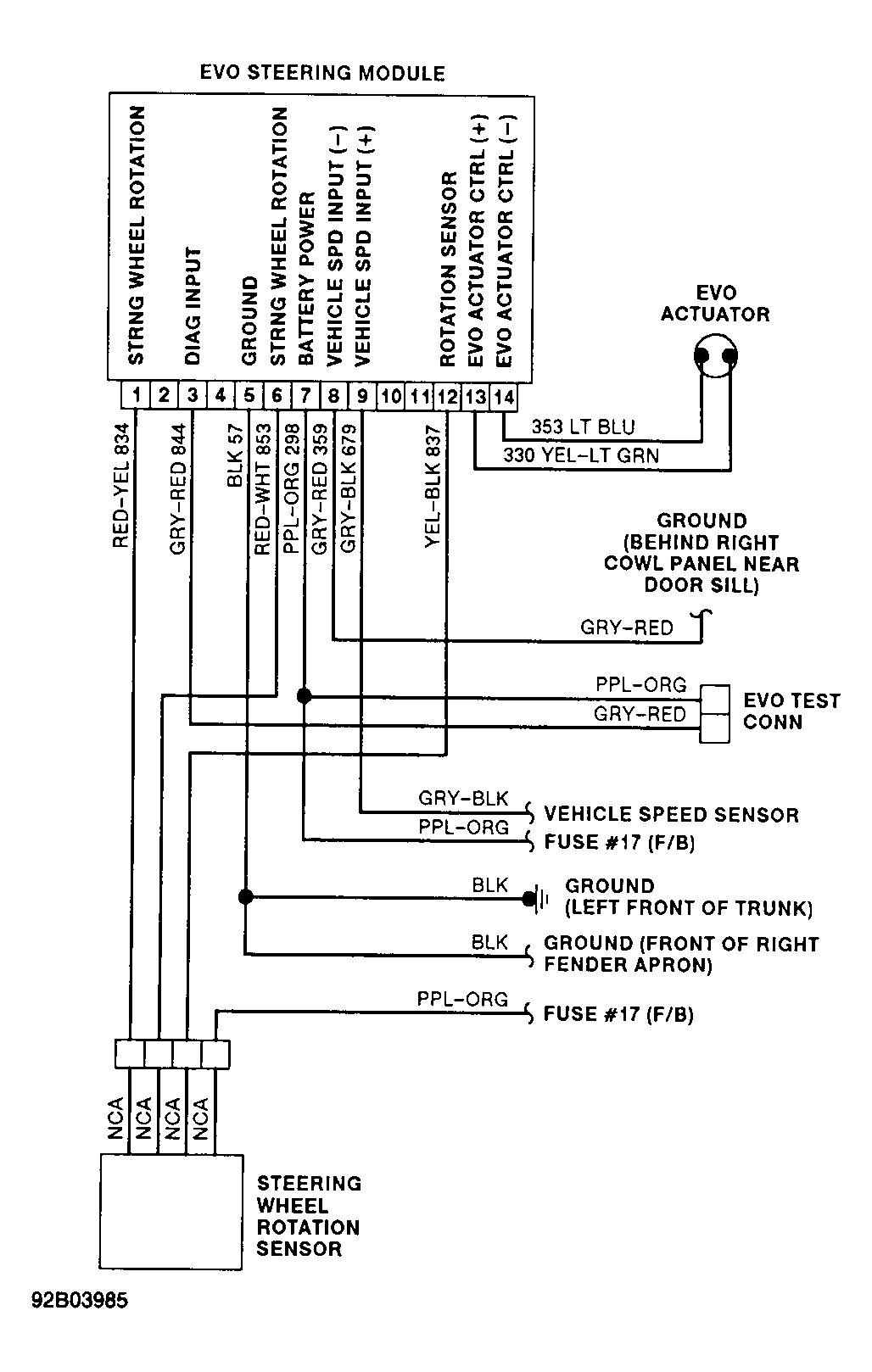

Fig 1: EVO System Wiring Diagram
G92B03985

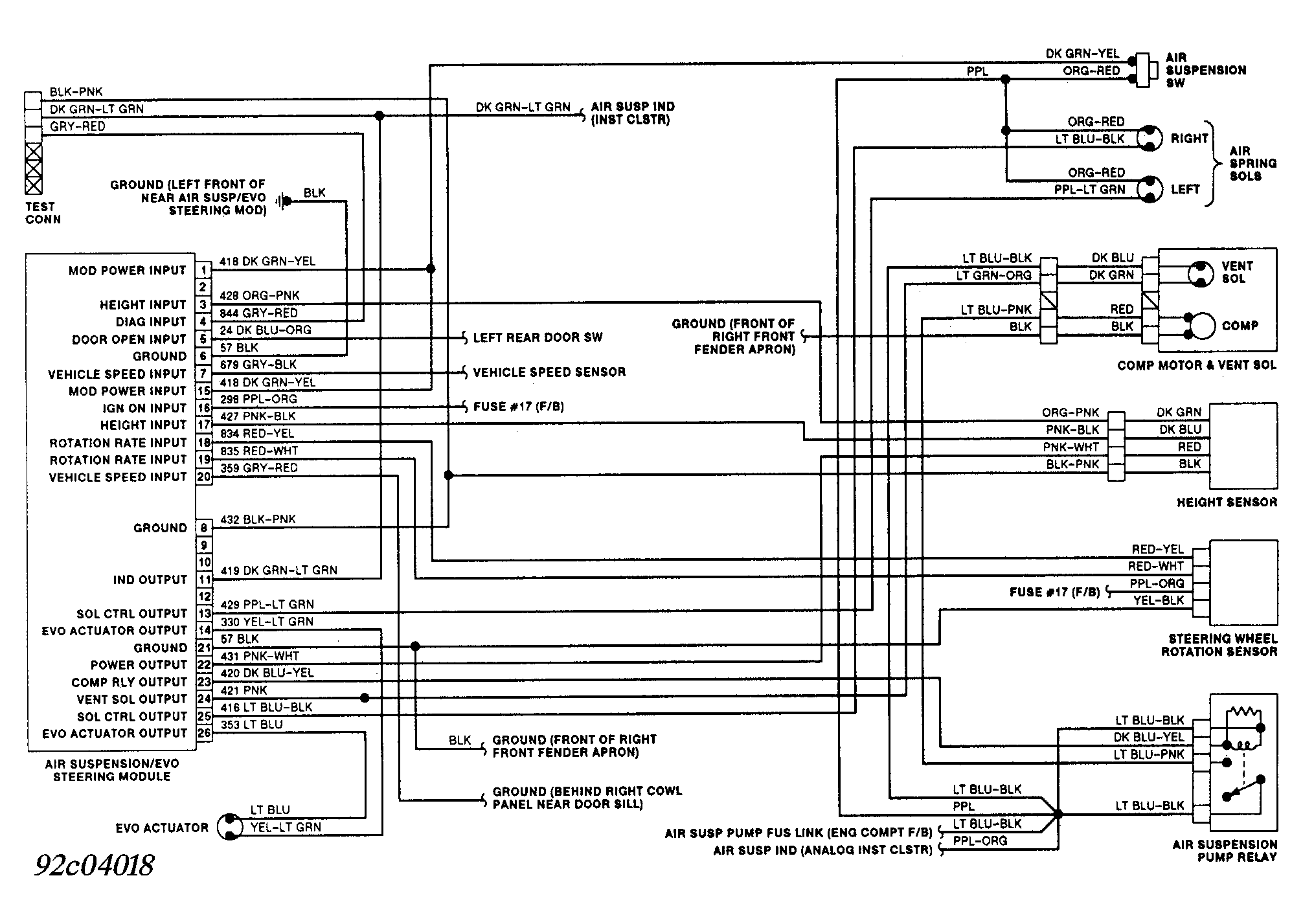

Fig 2: EVO System Wiring Diagram W/ Air Suspension
G92C04018

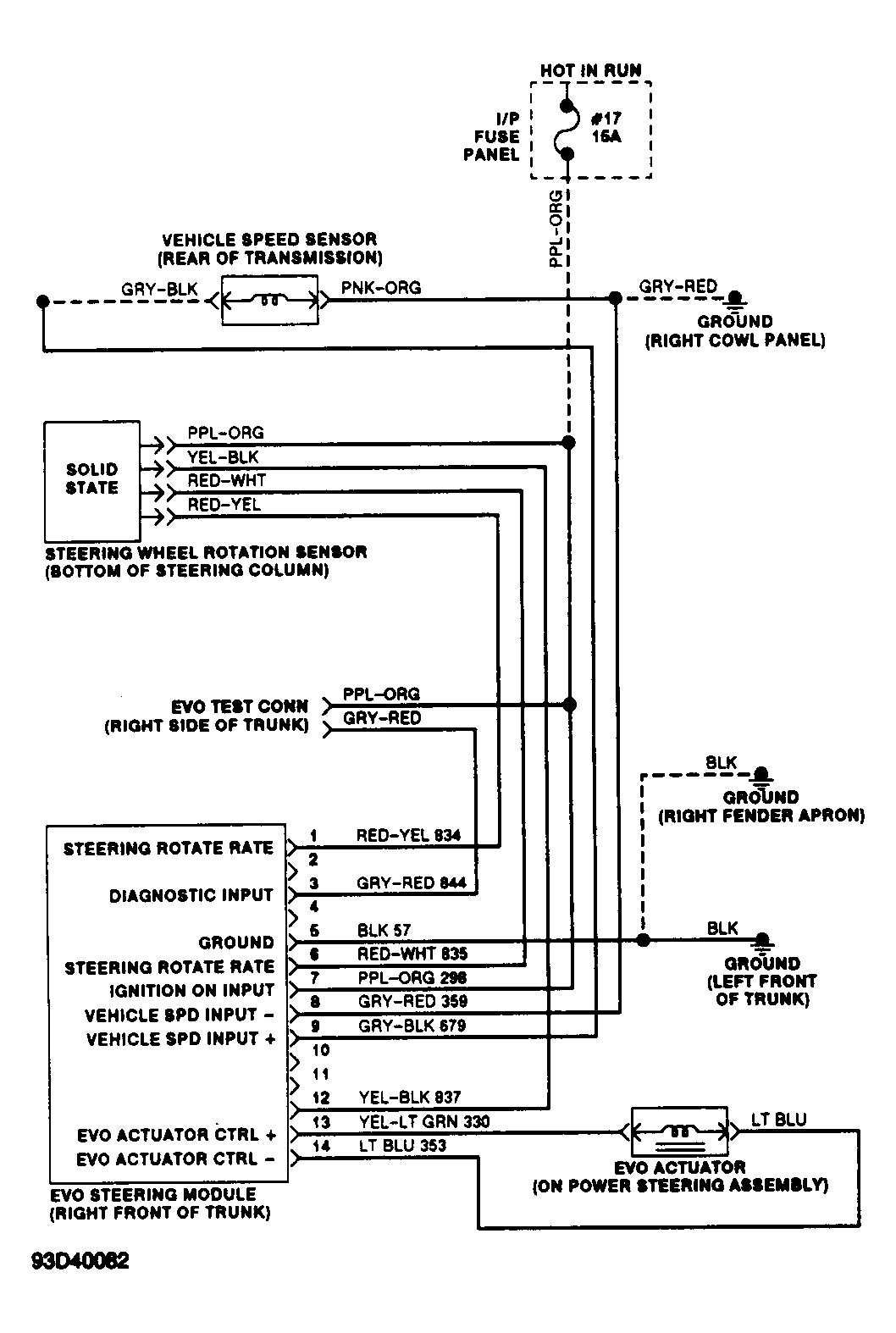

Fig 3: EVO System Wiring Diagram
G93D40082
