3.0L 4V Five Hundred/Freestyle/Montego
SENSORS/INPUTS - 3.0L 4V FIVE HUNDRED/FREESTYLE/MONTEGO

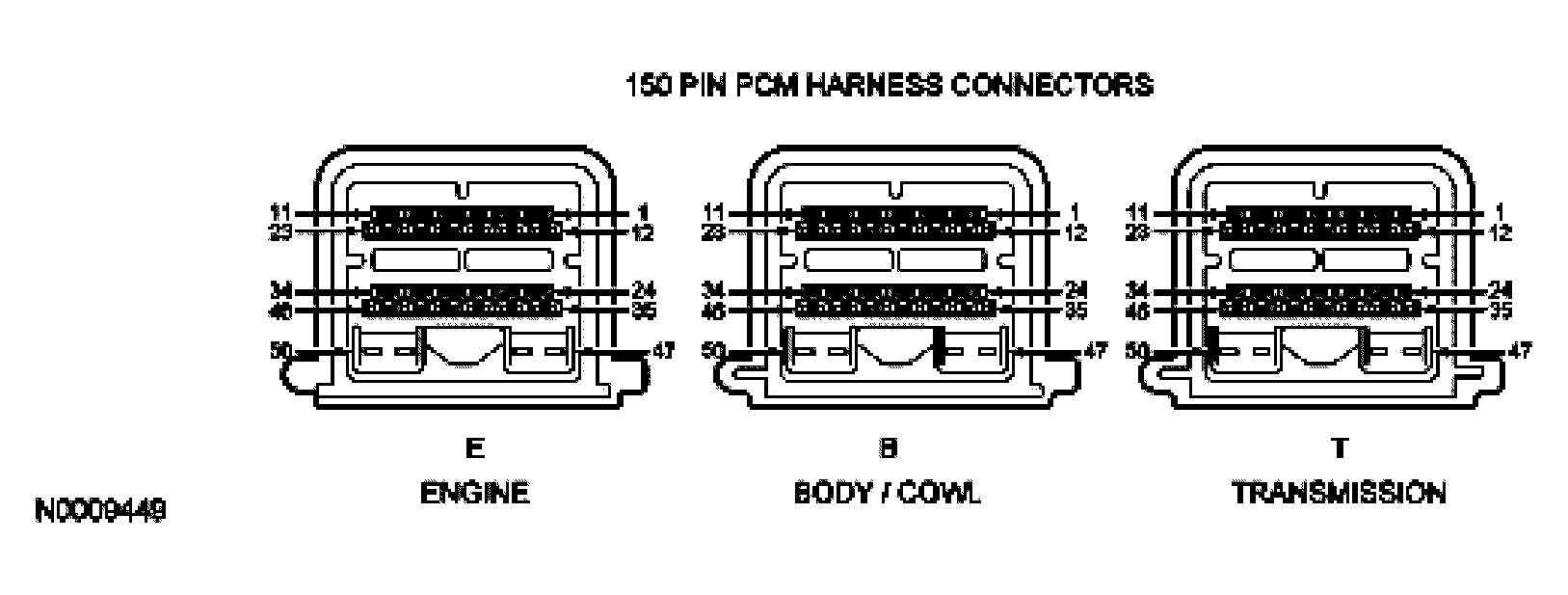

| Sensors/Inputs | PCM Pin/PID only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| APP1 | B5 | 4.1 | 4.2 | 3.9 | 3.7 | DCV |
| BPS | B7 | 0.1/OFF | VBAT/ON (E) | 0.1/OFF | 0.1/OFF | DCV/OFF-ON |
| FTP | B9 | 2.6/57 | 2.6/48 | 2.6/65 | 2.6/36 | DCV/kPa |
| ACET | B15 | 0.1/OFF | VBAT/ON (A) | 0.1/OFF | 0.1/OFF | DCV/OFF-ON |
| APP2 | B17 | 1.6 | 1.7 | 1.9 | 2.1 | DCV |
| FPM | B21 | 0.1-VBAT / 0-100 | 0.1-VBAT / 0-100 | 0.1-VBAT / 0-100 | 0.1-VBAT / 0-100 | DCV/% |
| IAT (K) | B26 | 1.7-3.5/120-150 | 1.7-3.5/120-150 | 1.7-3.5/120-150 | 1.7-3.5/120-150 | DCV/DEG |
| APP3 | B28 | 1.0 | 1.1 | 1.3 | 1.5 | DCV |
| ACP | B31 | 0.1/OFF | VBAT/ON | 0.1/OFF | 0.1/OFF | DCV/OFF-ON |
| MAF (A/T) | B32 | 0 | 1.12-1.19 | 0.7-1.5 | 1.3-2 | DCV |
| MAF (CVT) | B32 | 0 | 1.19-1.32 | 0.7-1.5 | 1.3-2 | DCV |
| PATSIN | B42 | VBAT | VBAT | VBAT | VBAT | DCV |
| MAF SIGRTN | B43 | 0 | 0.6-0.9 | 1-1.6 | 1.3-2.3 | DCV |
| FEPS | B44 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | DCV |
| PSP | B46 | 0.1/LOW | VBAT/HIGH (I) | 0.1/LOW | 0.1/LOW | DCV / HIGHLOW |
| TP1 NS | E19 | 4.1 | 4.4 | 4.1 | 4.0 | DCV |
| ECT | E21 | 0.5-2.7/210-110 | 0.5-2.7/210-110 | 0.5-2.7/210-110 | 0.5-2.7/210-110 | DCV/DEG F |
| MAP | E23 | 4 | 1-1.4 | 1.8-2.1 | 1.9-2.3 | DCV |
| CMP | E25 | 0 | 5-7 | 13-16 | 20-23 | Hz |
| GENLI | E26 | 11.89/0 | VBAT/42.97 | VBAT/25 | VBAT/25 | DCV/% |
| TP2 PS | E29 | 1.1 | 0.8 | 1.1 | 1.2 | DCV |
| HO2S11 | E30 | 0 | switching (C) | switching (C) | switching (C) | DCV |
| HO2S21 | E31 | 0 | switching (C) | switching (C) | switching (C) | DCV |
| KS | E32 | 0 | 0 | 0 | 0 | DCV |
| CKP | E34 | 0 | 400-500 | 850-1050 | 1050-1150 | Hz |
| FRT | E36 | 0.5-3 / 210-110 | 0.5-3 / 210-110 | 0.5-3 / 210-110 | 0.5-3 / 210-110 | DCV/DEG |
| FRP | E37 | 1.3/14 | 3.7/39 | 3.7/39 | 3.7/39 | DCV/PSI |
| DPFE | E44 | 0.5-1.3 | 0.5-1.3 | 0.5-4.65 | 0.5-4.65 | DCV |
| SMR | T5 | 0 | 0 | 0 | 0 | DCV |
| HO2S12 | T24 | 0.1 | (D) | (D) | (D) | DCV |
| HO2S22 | T25 | 0.1 | (D) | (D) | (D) | DCV |
| BPP/BOO | PID | OFF | ON (E) | OFF | OFF | ON/OFF |
| CPP/PNP | PID | NEUTRAL | NEUTRAL | DRIVE | DRIVE | NEUTRAL / DRIVE |
| FLI (H) | PID | 50 | 50 | 50 | 50 | % |
| LOAD | PID | (L) | 10-20 | 19-30 | 30-48 | % |
| MISF | PID | OFF | OFF | OFF | OFF | OFF-ON |
| OCTADJS | PID | NO RETARD | NO RETARD | NO RETARD | NO RETARD | NO RETARD/RETARD |
| RPM | PID | 0 | 705-775 | 1200-1400 | 1600-1800 | RPM |
| VSS | PID | 0 | 0 | 30 | 55 | MPH |
ACTUATORS/OUTPUTS - 3.0L 4V FIVE HUNDRED/FREESTYLE/MONTEGO
| Actuators/Outputs | PCM Pin/PID only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| PATSTRT/SMC | B2 | 0 | 0 | 0 | 0 | DCV |
| FP | B12 | 8.3/75 | 3.6/27 | 3.6/27 | 3.8/29 | DCV/% |
| EVAPCV | B13 | VBAT | 0-10/0-100 | 0-10/0-100 (R) | 0-10/0-100 (R) | Hz/% |
| PATS OUT | B22 | 0.8 | 0.8 | 0.8 | 0.8 | DCV |
| ACCR (WAC) | B25 | VBAT/OFF | 1.5/ON | VBAT/OFF | VBAT/OFF | DCV/OFF-ON |
| EVMV | B34 | 0 | 0-10/0-100 | 0-10/0-100 | 0-10/0-100 | Hz/% |
| CDA (CYL 1) | E1 | VBAT | VBAT | VBAT | VBAT | DCV |
| INJ1 | E2 | 0 | 2.6-3.2 | 2.5-5.5 | 3.5-8.5 | mS |
| INJ2 | E3 | 0 | 2.6-3.2 | 2.5-5.5 | 3.5-8.5 | mS |
| INJ3 | E4 | 0 | 2.6-3.2 | 2.5-5.5 | 3.5-8.5 | mS |
| INJ4 | E5 | 0 | 2.6-3.2 | 2.5-5.5 | 3.5-8.5 | mS |
| EGRVR | E6 | VBAT/0 | VBAT/0 | (T) | (T) | DCV/% |
| INJ5 | E8 | 0 | 2.6-3.2 | 2.5-5.5 | 3.5-8.5 | mS |
| INJ6 | E9 | 0 | 2.6-3.2 | 2.5-5.5 | 3.5-8.5 | mS |
| CDC (CYL 2) | E12 | VBAT | VBAT | VBAT | VBAT | DCV |
| GENRC | E13 | 100/60 | 0/0 | 0/0 | 0/0 | Hz/% |
| FC-V | E14 | 0/100 | 0/100 | 0/100 | 0/100 | % |
| CDE (CYL 3) | E24 | VBAT | VBAT | VBAT | VBAT | DCV |
| CDB (CYL 4) | E35 | VBAT | VBAT | VBAT | VBAT | DCV |
| CDD (CYL 5) | E38 | VBAT | VBAT | VBAT | VBAT | DCV |
| CDF (CYL 6) | E39 | VBAT | VBAT | VBAT | VBAT | DCV |
| TACM (+) | E47 | 3.7 | VBAT | VBAT | VBAT | DCV |
| TACM (-) | E48 | 3.7 | VBAT | VBAT | VBAT | DCV |
| HTR11 | E49 | 0.1/ON (O) | 0.1/ON | 0.1/ON | 0.1/ON | DCV/OFF-ON |
| HTR21 | E50 | 0.1/ON (O) | 0.1/ON | 0.1/ON | 0.1/ON | DCV/OFF-ON |
| HTR12 | T47 | 0.2/ON (O) | 0.2/ON | 0.2/ON | 0.2/ON | DCV/OFF-ON |
| HTR22 | T48 | 0.2/ON (O) | 0.2/ON | 0.2/ON | 0.2/ON | DCV/OFF-ON |
| LONGFT1 | PID | (-)20-(+)20 | (-)20-(+)20 | (-)20-(+)20 | (-)20-(+)20 | % |
| LONGFT2 | PID | (-)20-(+)20 | (-)20-(+)20 | (-)20-(+)20 | (-)20-(+)20 | % |
| MIL | PID | OFF | OFF | OFF | OFF | OFF-ON |
| SHRTFT1 | PID | (L) | (-)10-(+)10 | (-)10-(+)10 | (-)10-(+)10 | % |
| SHRTFT2 | PID | (L) | (-)10-(+)10 | (-)10-(+)10 | (-)10-(+)10 | % |
| SPARKADV | PID | 0 | 14-20 | 36-44 | 30-40 | DEG |
| TCIL | PID | OFF | OFF | OFF | OFF | OFF-ON |
OTHER - 3.0L 4V FIVE HUNDRED/FREESTYLE/MONTEGO
| Other | PCM Pin/PID only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| ETCVREF | E18/B24/B4 | 5 | 5 | 5 | 5 | DCV |
| VPWR | B35/36 | VBAT | VBAT | VBAT | VBAT | DCV |
| VREF | B40/E40 | 5 | 5 | 5 | 5 | DCV |
| KAPWR | B45 | VBAT | VBAT | VBAT | VBAT | DCV |
