Pinpoint Test Ta: Clutch Pedal Position (CPP) Switch: Introduction: Notes

This pinpoint test is intended to diagnose the following:

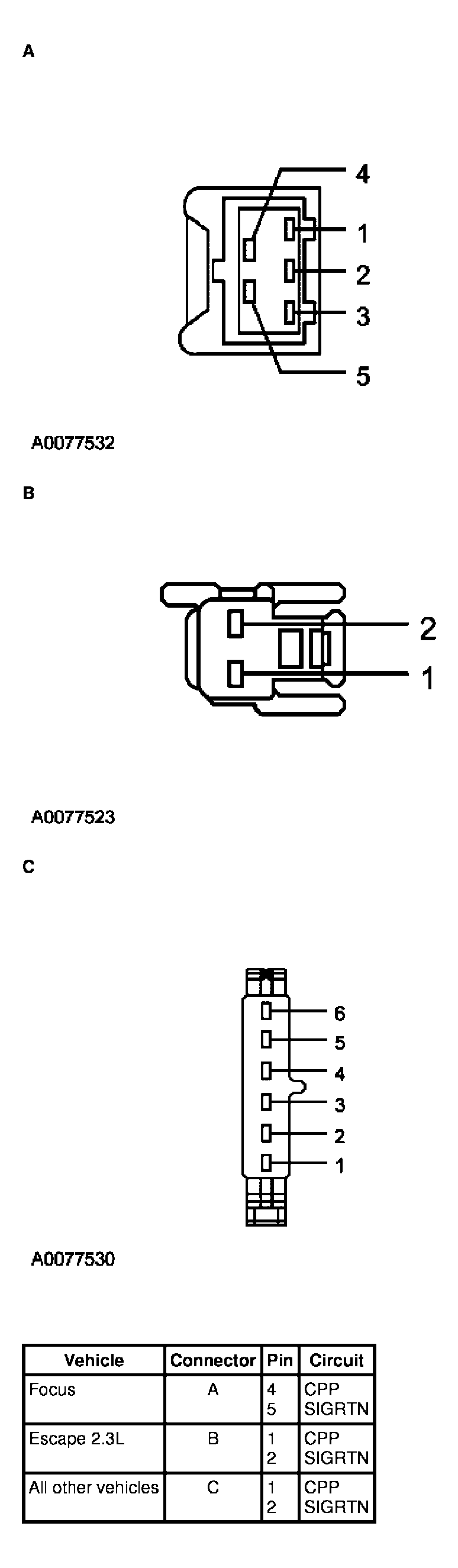

Fig 1: Clutch Pedal Position (CPP) Switch Connector
G04587276Courtesy of FORD MOTOR CO.
