Pinpoint Test Kg: Fuel Injector: Introduction: Notes

This pinpoint test is intended to diagnose the following:

• fuel injector(s) (9F593)
• harness circuits: VPWR and INJ 1 - 10
• powertrain control module (PCM) (12A650)

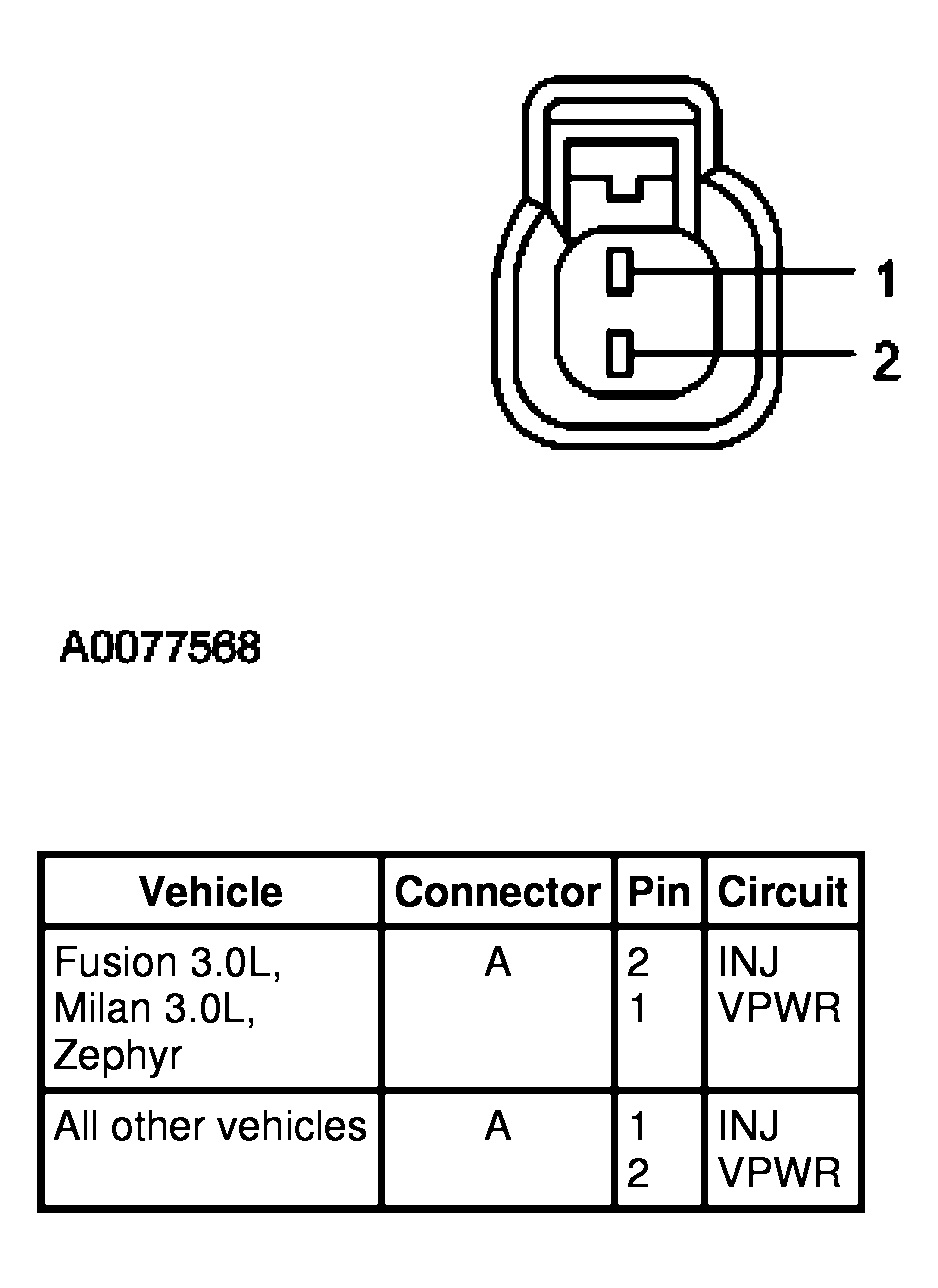

Fig 1: Injector (INJ) Connector

Courtesy of FORD MOTOR CO.
