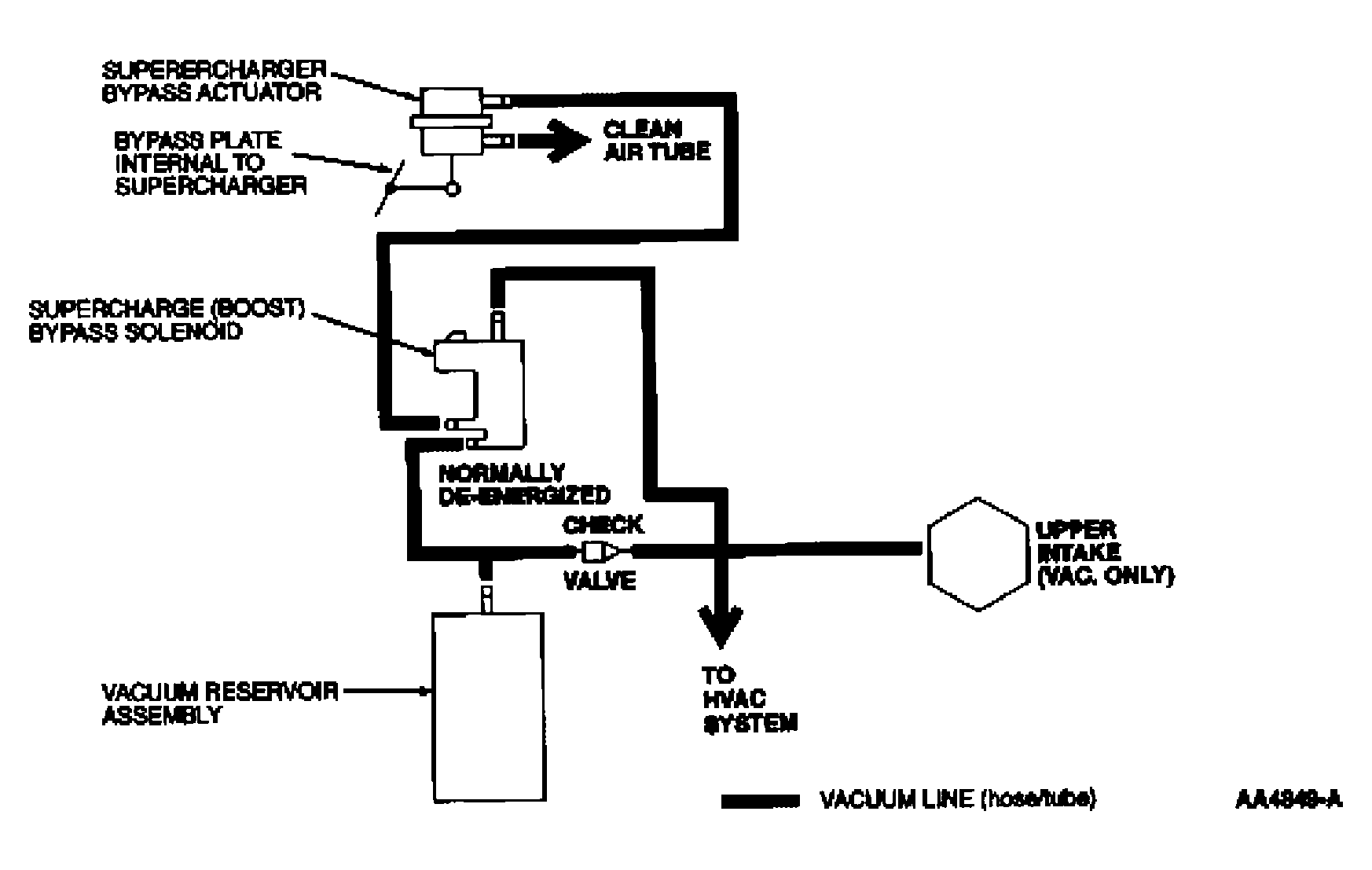

Pinpoint Test KJ: Supercharger Bypass Control: Introduction: Notes
This pinpoint test is intended to diagnose the following:
- supercharger bypass solenoid (9H465) (part name is: thermactor air control solenoid/vacuum valve assembly)
- supercharger assembly (including the supercharger bypass actuator) (6F076)
- vacuum reservoir assembly (9J442)
- vacuum hoses

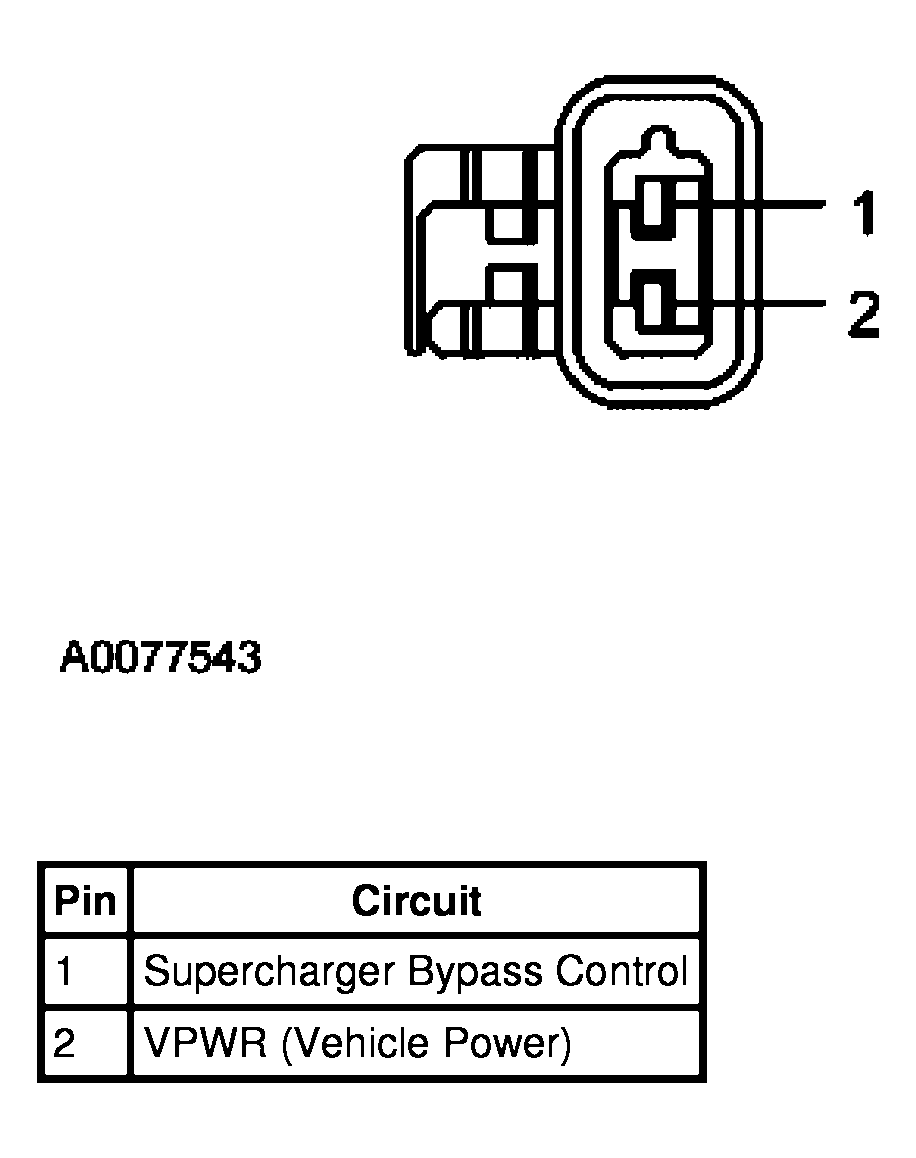

- harness circuits: supercharger bypass control, VPWR and PWRGND
- powertrain control module (PCM) (12A650)
