Three Speed Fan Operation

Although the PCM output circuits are called low, medium and high fan control (FC), cooling fan operation is controlled by a combination of these outputs.

Refer to ENGINE CONTROL COMPONENTS .

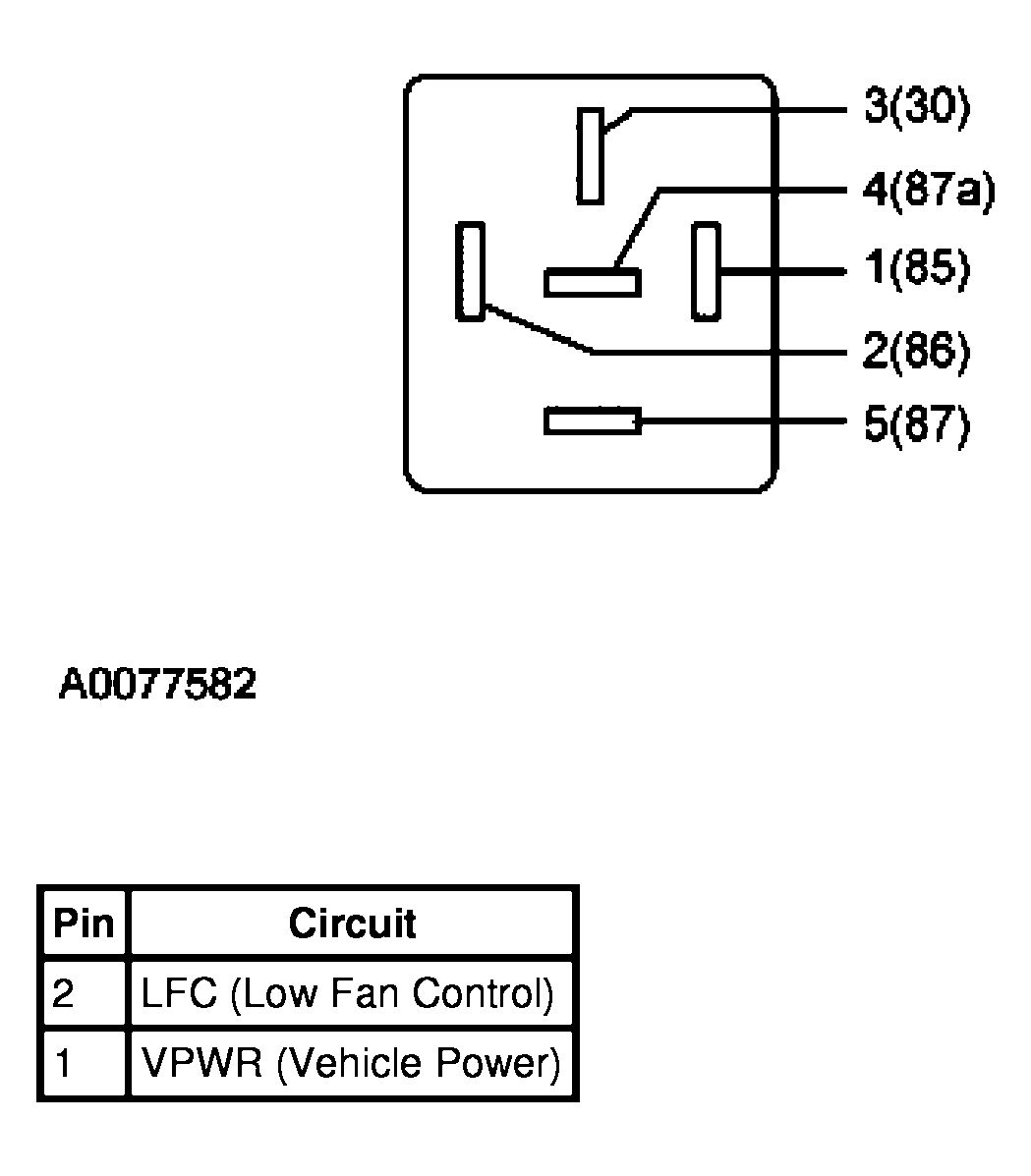

Fig 1: Low Fan Control (LFC) Relay Connector

Courtesy of FORD MOTOR CO.

NOTE: The VPWR and LFC circuits may be reversed in the harness connector. Also, the LFC circuit may be wired to 2 separate relays. Refer to the appropriate SYSTEM WIRING DIAGRAMS for additional information.

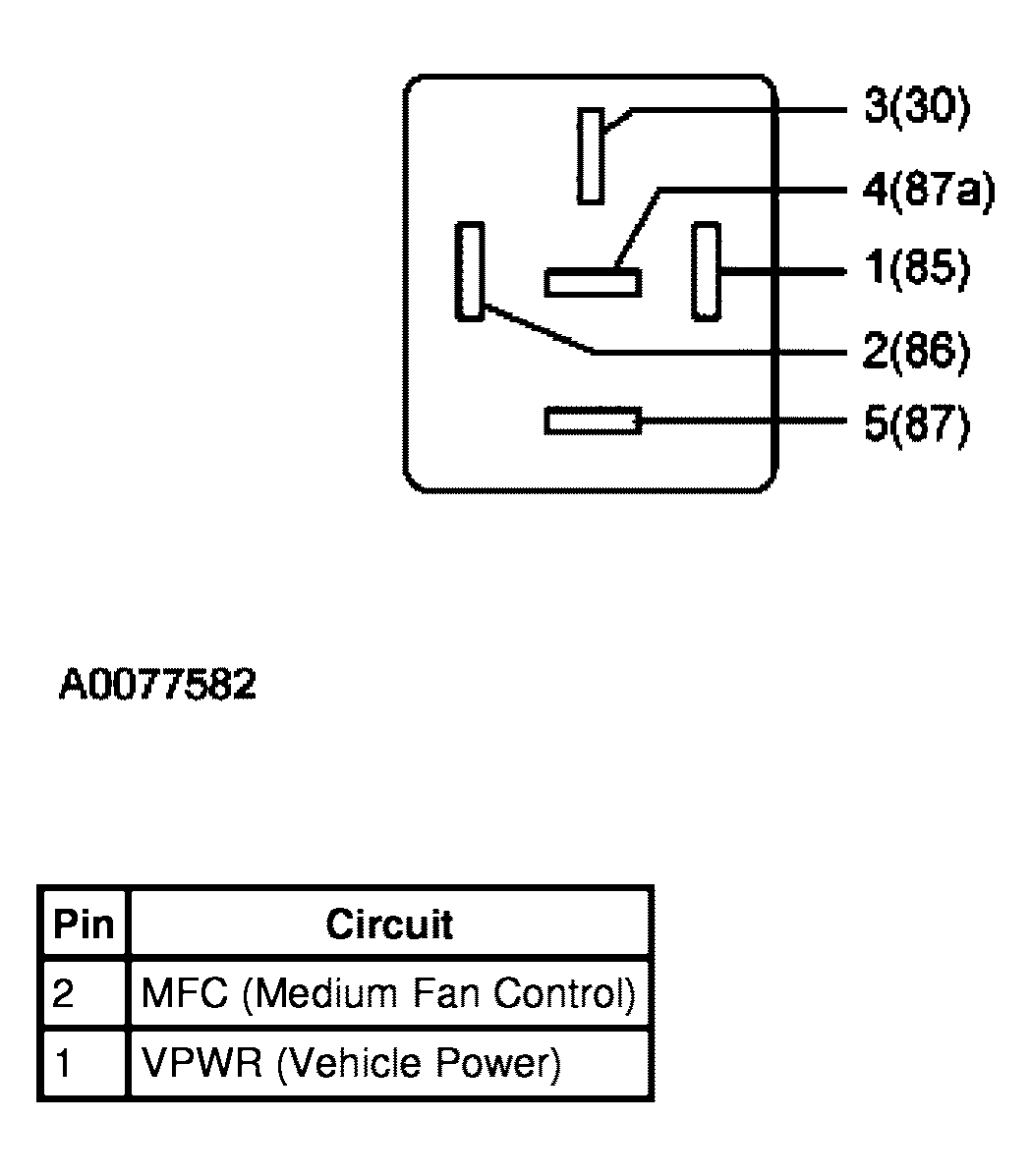

Fig 2: Medium Fan Control (MFC) Relay Connector

Courtesy of FORD MOTOR CO.

NOTE: The VPWR and MFC circuits may be reversed in the harness connector. Also, the MFC circuit may be wired to 2 separate relays. Refer to the appropriate SYSTEM WIRING DIAGRAMS for additional information.

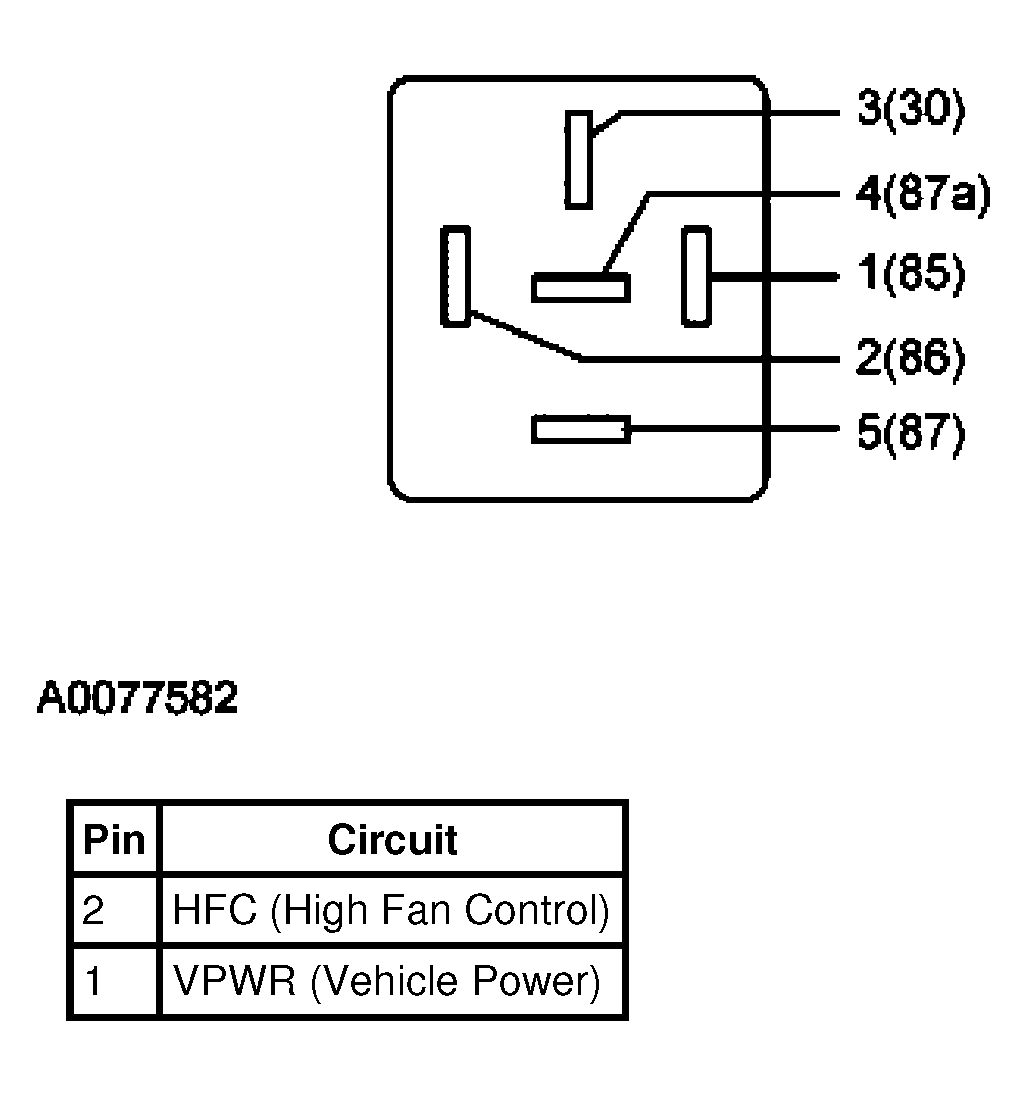

Fig 3: High Fan Control (HFC) Relay Connector

Courtesy of FORD MOTOR CO.

NOTE: The VPWR and HFC circuits may be reversed in the harness connector. Also, the HFC circuit may be wired to 2 separate relays. Refer to the appropriate SYSTEM WIRING DIAGRAMS for additional information.
