Intake Manifold Tuning Valve (IMTV) System
WARNING:
SUBSTANTIAL OPENING AND CLOSING TORQUE IS APPLIED BY THIS SYSTEM. TO PREVENT INJURY, BE CAREFUL TO KEEP FINGERS AWAY FROM LEVER MECHANISMS WHEN ACTUATED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
The IMTV is a motorized actuated unit mounted directly to the intake manifold. For additional information on IMTV components, refer to ENGINE CONTROL COMPONENTS .

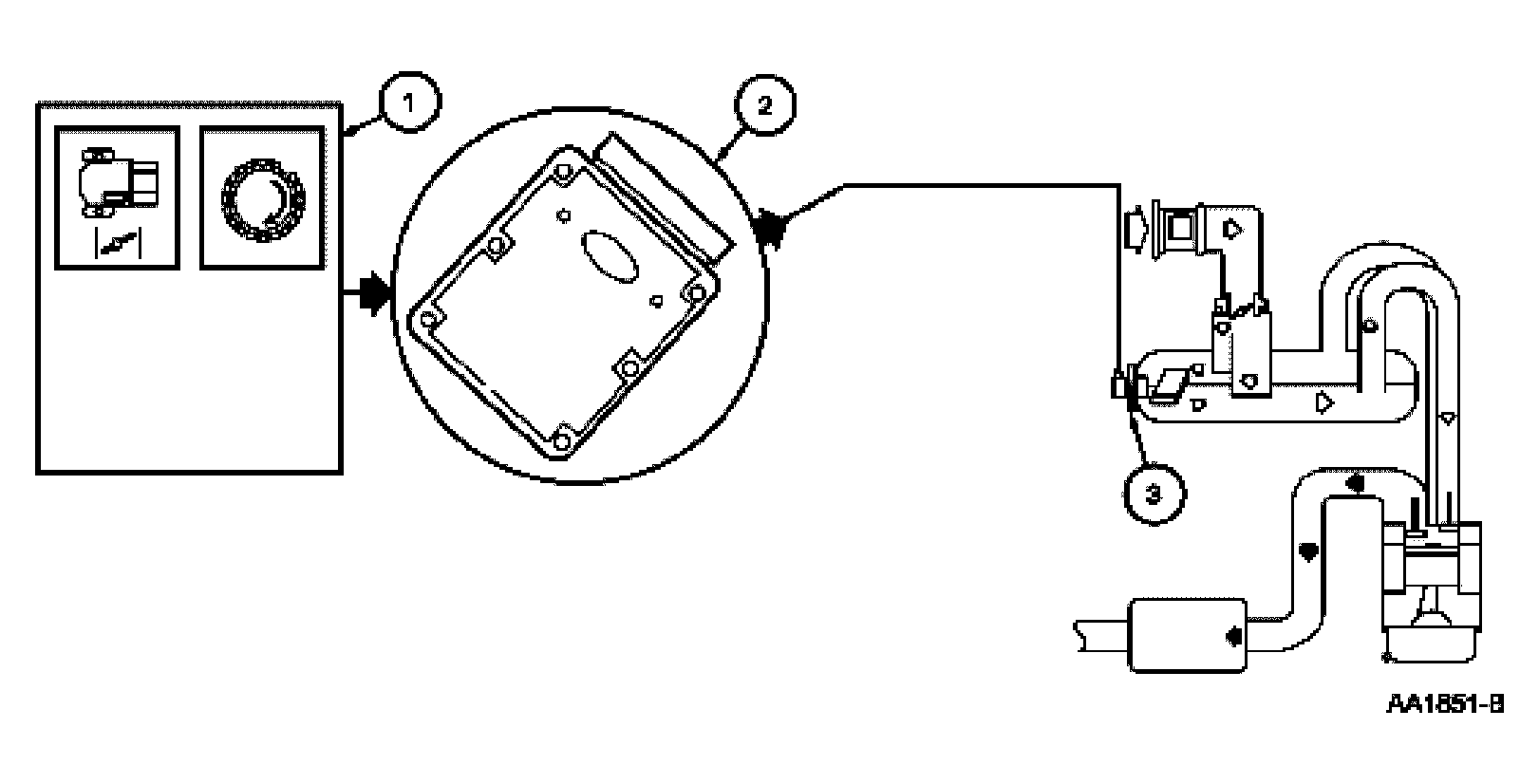

The motorized IMTV unit is not energized below approximately 2,600 RPM. The shutter is in the closed position not allowing airflow blend to occur in the intake manifold. Above approximately 2,600 RPM the motorized unit is energized. The motorized unit is commanded on by the PCM initially at a 100 percent duty cycle to move the shutter to the open position, and then falling to approximately 50 percent to continue to hold the shutter open.
- The PCM uses the TP sensor and CKP signals to determine activation of the IMTV system. There must be a positive change in voltage from the TP sensor along with the increase in RPM to open the shutter.
- The PCM uses the information from the input signals to control the IMTV.
- When commanded on by the PCM, the motorized actuator shutter opens up the end of the vertical separating wall at high engine speeds to allow both sides of the manifold to blend together.
