Removal and Installation

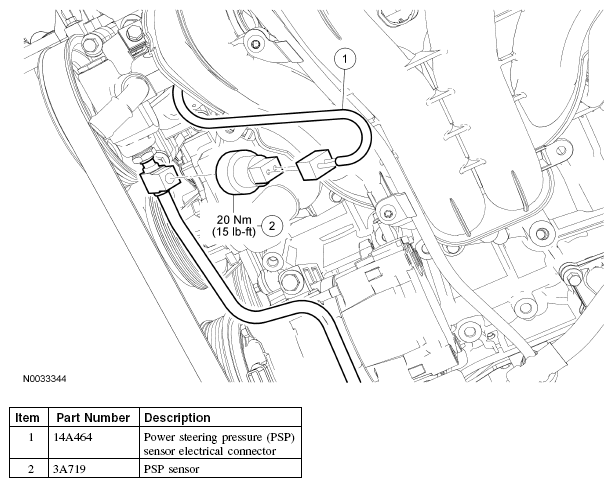

Fig 1: Power Steering Pressure (PSP) Switch With Torque Specifications
G04652597Courtesy of FORD MOTOR CO.
  1. Disconnect the power steering pressure (PSP) switch electrical connector.
  2. Remove the PSP switch.
    • To install, tighten to 20 Nm (15 lb-ft).
  3. To install, reverse the removal procedure.
