Oil Pump Screen and Pickup Tube: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the oil pan. For additional information, refer to OIL PAN  in this article.
  3. Remove the 2 bolts and the oil pump screen and pickup tube.
    • Discard the gasket.

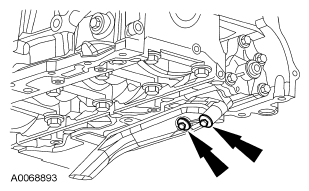

      Fig 1: Locating Oil Pump Pickup Tube Bolts
      G04652086Courtesy of FORD MOTOR CO.
