Radiator and Cooling Fan - Exploded View

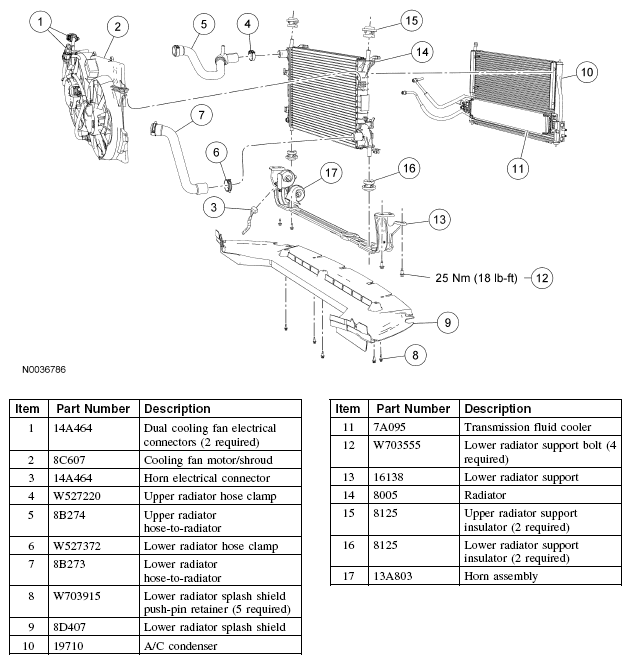

Fig 1: Exploded View Of Radiator And Cooling Fan With Torque Specifications
G04652497Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
