Battery and Battery Tray - Exploded View
Battery and Battery Tray - Exploded View

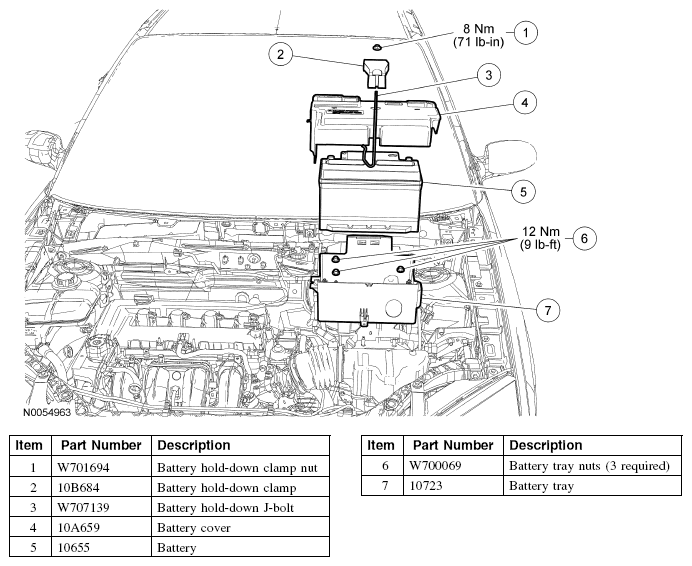

Fig 1: Exploded View Of Battery And Battery Tray
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure in this article.
Courtesy of FORD MOTOR CO.
