Battery Cables: Notes

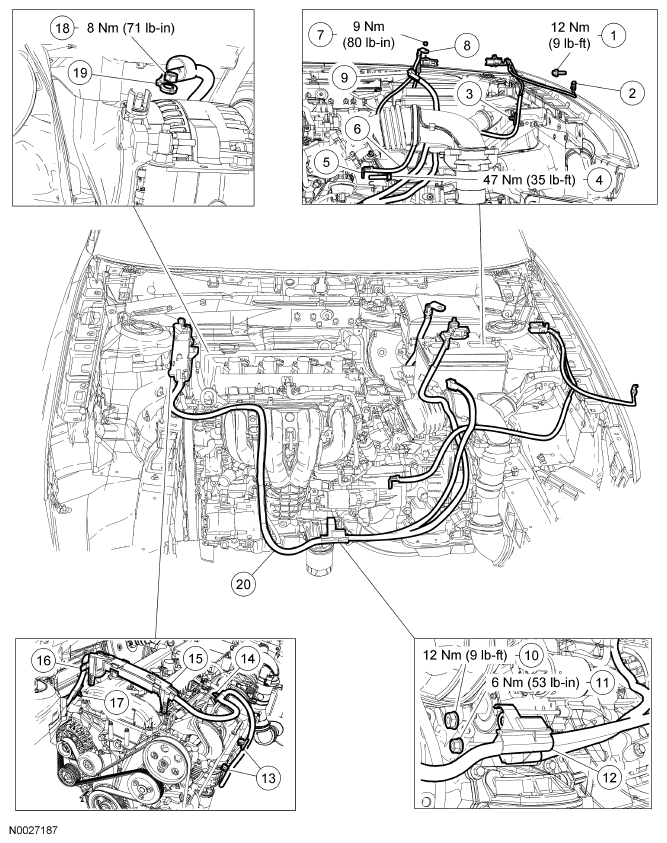

Fig 1: Battery Cables - 2.0L And 2.3L With Torque Specifications
G04654023Courtesy of FORD MOTOR CO.

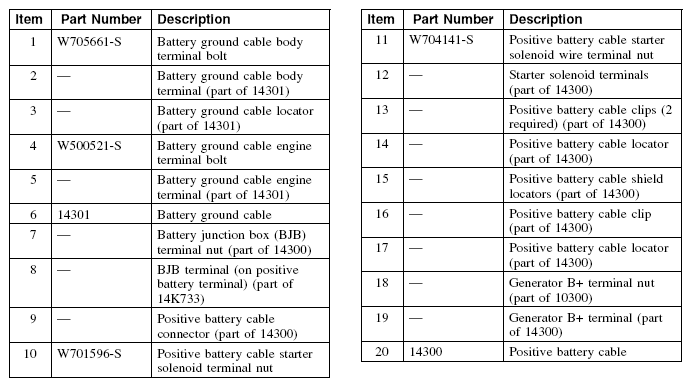

Fig 2: Parts Number Description Chart
G04654024Courtesy of FORD MOTOR CO.

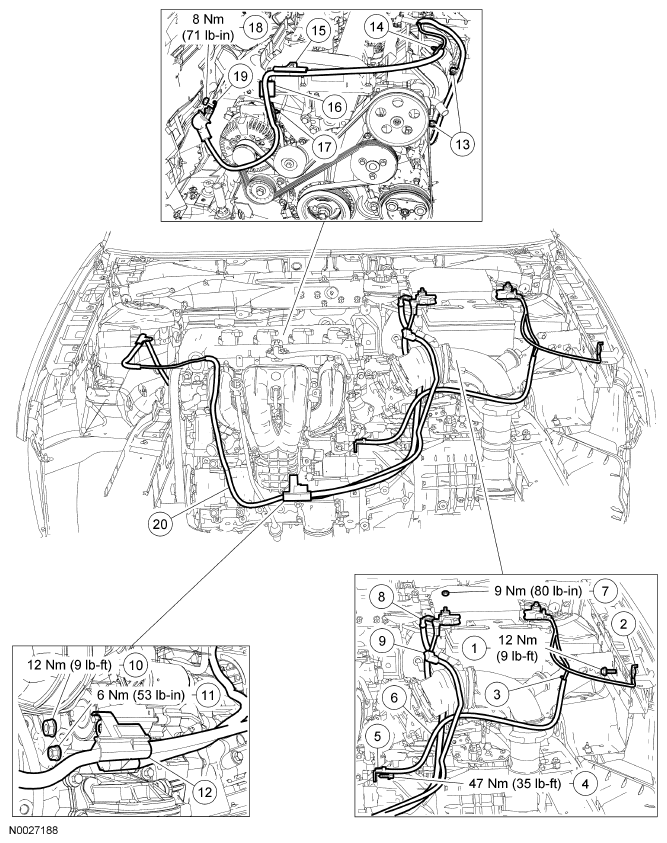

Fig 3: Battery Cables - 2.0L PZEV (Partial Zero Emissions Vehicle) With Torque Specifications
G04654025Courtesy of FORD MOTOR CO.

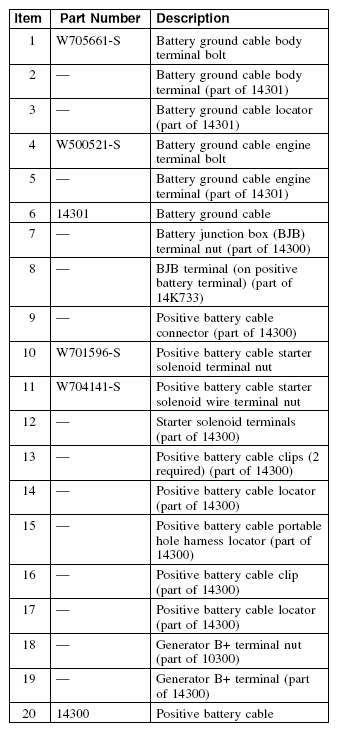

Fig 4: Parts Number Description Chart
G04654026Courtesy of FORD MOTOR CO.
