Removal and Installation

WARNING: Use of any other than approved DOT 3 brake fluid will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury.
WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in personal injury.
CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
  1. Remove the battery tray. For additional information, refer to BATTERY MOUNTING AND CABLES .
  2. Disconnect the low brake fluid warning indicator switch electrical connector.
    1. Pull back the tab.
    2. Press the clips.
    3. Disconnect the electrical connector.
      Fig 1: Identifying Tab, Clips and Electrical Connector
      G04651705Courtesy of FORD MOTOR CO.
  3. CAUTION: Make sure the filler cap does not become contaminated.
  4. Remove the reservoir filler cap.
  5. Using a suitable clean suction device, drain the reservoir.
  6. Install the brake fluid reservoir cap.
  7. Disconnect the battery junction box (BJB) electrical connectors.

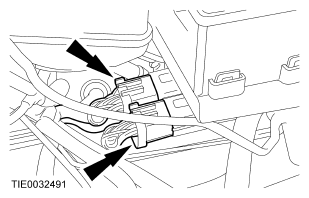

    Fig 2: Locating Battery Junction Box (BJB) Electrical Connectors
    G04651706Courtesy of FORD MOTOR CO.
  8. Disconnect the BJB from the bracket and position aside.
    • Press the locking tabs.
      Fig 3: Locating Locking Tabs
      G04651707Courtesy of FORD MOTOR CO.
  9. Disconnect the ABS module electrical connector by rotating the connector.
  10. CAUTION: Cap the brake line connections to prevent fluid loss or dirt contamination.
  11. Disconnect the HCU brake lines.
    • To install, tighten to 18 Nm (13 lb-ft).
  12. Remove the brake lines from the clips.

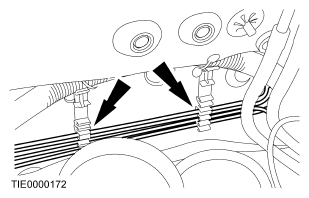

    Fig 4: Locating Brake Lines From Clips
    G04651708Courtesy of FORD MOTOR CO.
  13. Disconnect the wiring harness from the wheelhouse assembly.
  14. Remove the 3 HCU bracket-to-frame nuts.
    • To install, tighten to 9 Nm (80 lb-in).
  15. Remove the 2 HCU-to-bracket bolts and separate the HCU from the support bracket.
    • To install, tighten to 9 Nm (80 lb-in).
  16. To install, reverse the removal procedure.
