Front Brake Caliper: Notes

MATERIAL

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A or WSS-M6C62-A

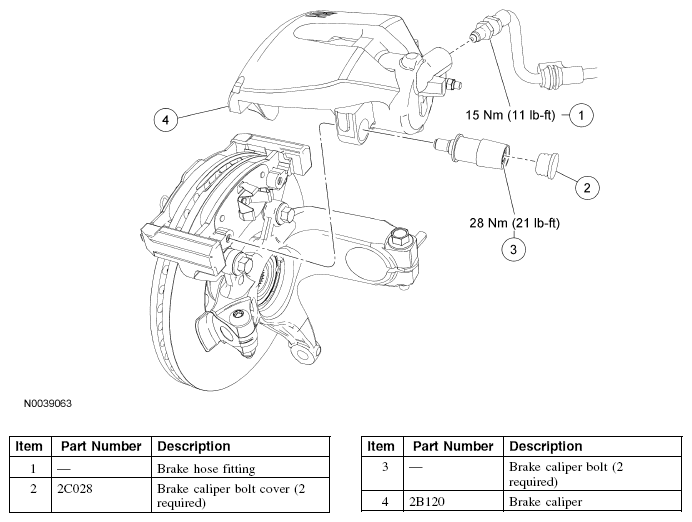

Fig 1: Identifying Brake Caliper Components
G04651633Courtesy of FORD MOTOR CO.
