Removal and Installation

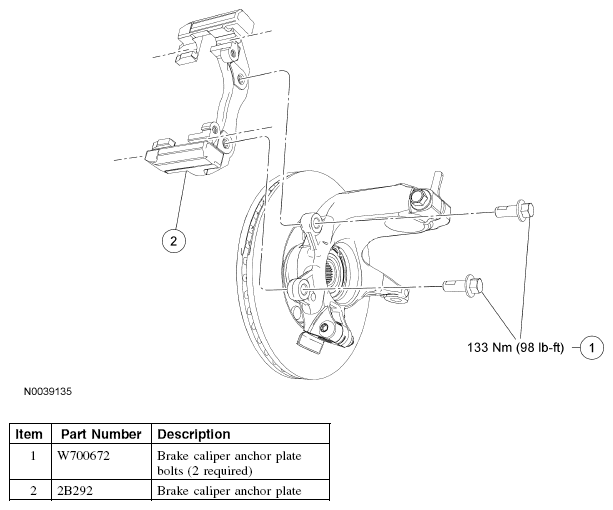

Fig 1: Identifying Brake Caliper Anchor Plate Remove/Install Component
G04651635Courtesy of FORD MOTOR CO.
  1. Remove the brake pads. For additional information, refer to BRAKE PADS .
  2. Remove the 2 bolts and the brake caliper anchor plate.
    • Discard the bolts.
    • To install, tighten the new bolts to 133 Nm (98 lb-ft).
  3. To install, reverse the removal procedure.
