Glass, Frames and Mechanisms - Exploded View, Rear Door

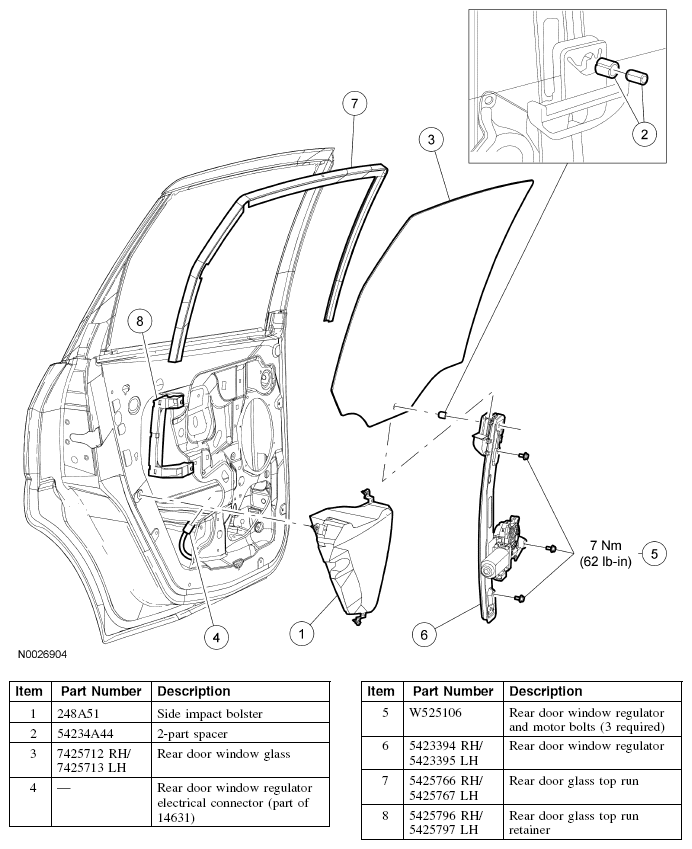

Fig 1: Exploded View Of Glass, Frames And Mechanisms Rear Door Components With Torque Specification

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
