Roof Opening Panel: Installation

    NOTE: The roof opening panel must be correctly located on the retaining clip before tightening the roof opening panel bolts.
    NOTE: Do not fully tighten the roof opening panel frame bolts at this stage.
  1. Compress the legs of the roof opening panel retaining clip and install the roof opening panel.
    • Loosely install the 12 bolts.
  2. Tighten the 12 roof opening panel frame bolts in the sequence shown.
    • Tighten to 9 Nm (80 lb-in).

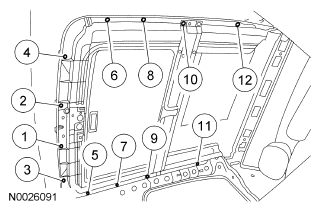

      Fig 1: Identifying Roof Opening Panel Frame Bolts
      G04654740Courtesy of FORD MOTOR CO.
  3. Connect the roof opening panel motor electrical connector.
  4. Connect the 2 front and the 2 rear drain hoses to the roof opening panel.
  5. Install the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
