Ford
>>
2006
>>
Focus ZX5 SE, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
Sunroof
>>
Removal And Installation
>>
Roof Opening Panel - Exploded View
Roof Opening Panel - Exploded View

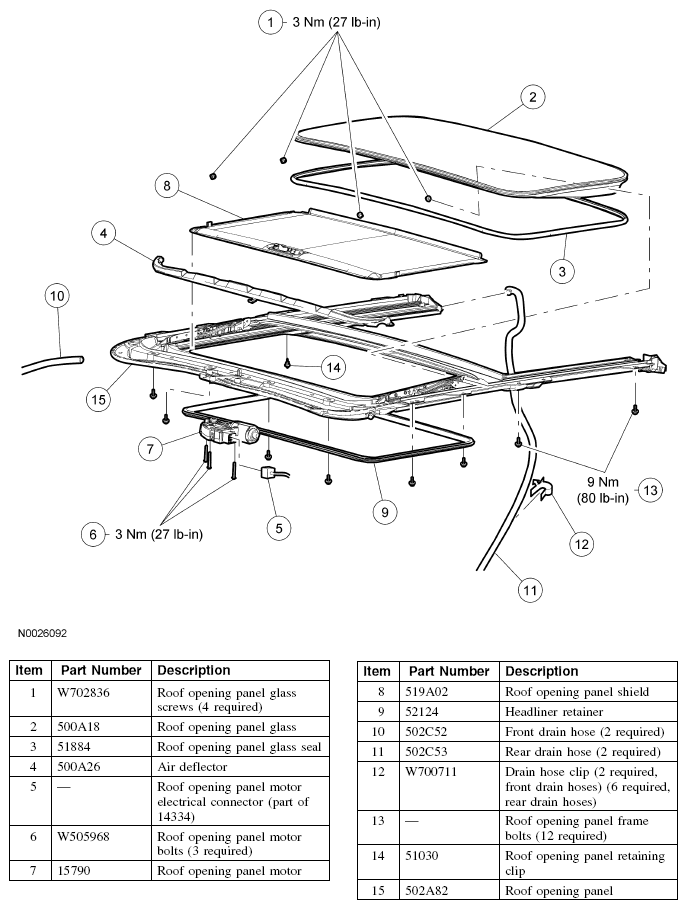

Fig 1: Exploded View Of Roof Opening Panel With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
Courtesy of FORD MOTOR CO.
