Seat - Exploded View, Rear

NOTE: Three-door and 5-door backrest shown, 4-door and wagon similar.

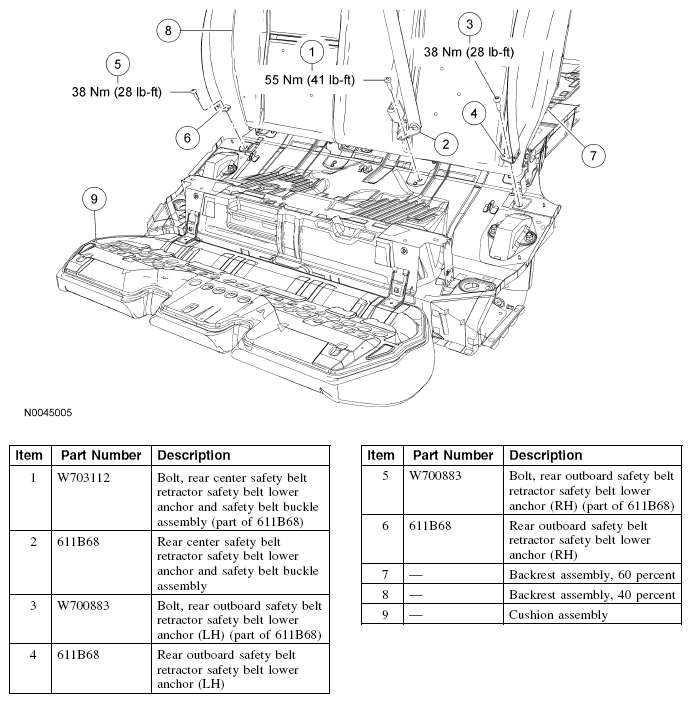

Fig 1: Exploded View Of Seat Backrest - Rear, Front View With Torque Specification
G04654361Courtesy of FORD MOTOR CO.
NOTE: Three-door and 5-door backrest shown, 4-door and wagon similar.

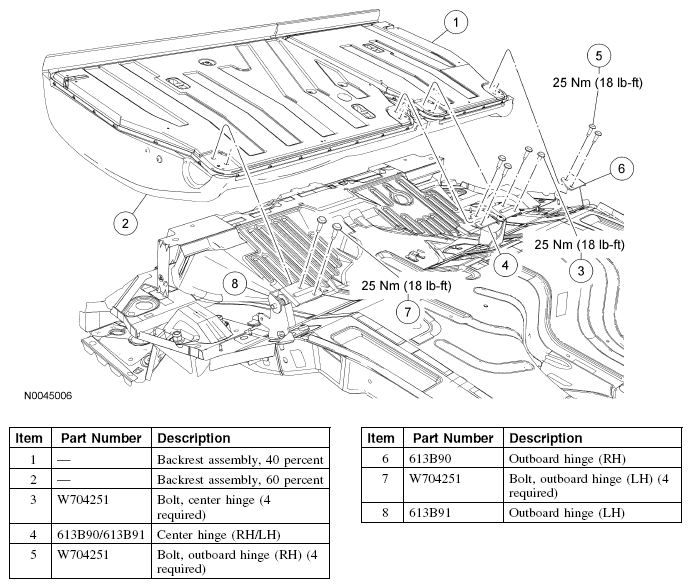

Fig 2: Exploded View Of Seat Backrest - Rear, Rear View With Torque Specification
G04654362Courtesy of FORD MOTOR CO.
NOTE: Three-door and 5-door backrest shown, wagon similar.

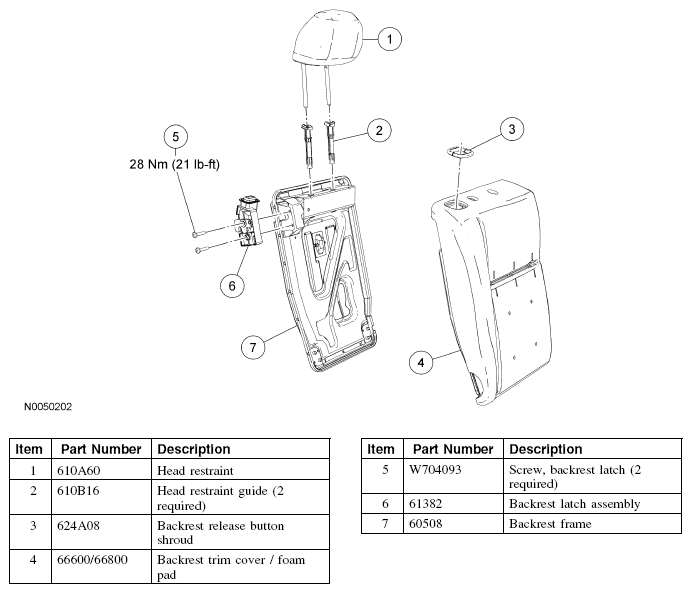

Fig 3: Exploded View Of Seat Backrest - Rear, 40 Percent, 3 And 5 Door With Torque Specification
G04654363Courtesy of FORD MOTOR CO.
NOTE: Three-door and 5-door backrest shown, wagon similar.

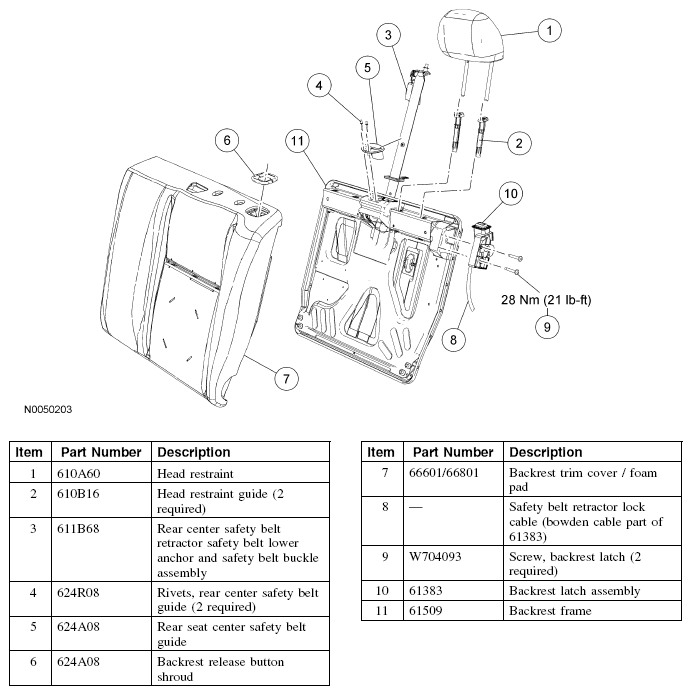

Fig 4: Exploded View Of Seat Backrest - Rear, 60 Percent, 3 And 5-Door With Torque Specification
G04654364Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
