Seat Cushion - Rear: Notes

NOTE: Four-door shown, others similar.

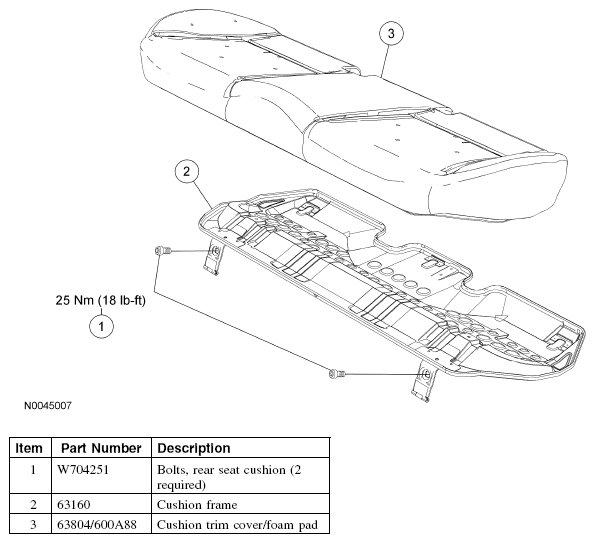

Fig 1: Exploded View Of Seat Cushion - Rear With Torque Specification

G04654422

Courtesy of FORD MOTOR CO.
