Seat Cushion - Rear: Disassembly

NOTE: Only late build seat trim cushion covers will be available for service.

All rear seat cushions

Remove the bolts and the rear seat cushion.

Fig 1: Locating Rear Seat Cushion Bolts
Courtesy of FORD MOTOR CO.

Early build seat cushion cover

Detach the J-clip and remove the seat cushion cover and foam pad from the cushion frame.

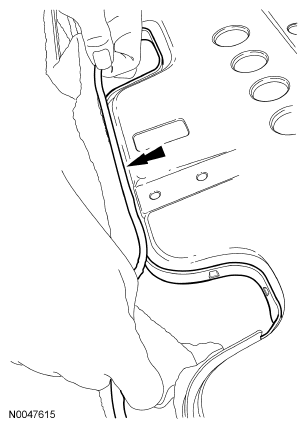

Fig 2: Detaching J-Clip
Courtesy of FORD MOTOR CO.

Late build seat cushion cover

Detach the seat cushion cover plastic retainer and remove the seat cushion cover and foam pad from the cushion frame.

Fig 3: Locating Seat Cushion Cover Plastic Retainer
Courtesy of FORD MOTOR CO.

Three-door and 5-door seat cushion covers

Remove the hog rings on the LH and RH side of the seat cushion cover and separate the cover from the foam pad.

Fig 4: Locating Hog Rings
Courtesy of FORD MOTOR CO.

Four-door and wagon seat cushion covers

CAUTION: Use care when separating the trim cover hook-and-loop fasteners to avoid tearing the fasteners from the seat cushion foam pad.

Release the hook-and-loop strips and remove the seat cushion cover from the cushion foam pad.
