Seat Cushion - Rear: Assembly

All rear seat cushions

Four-door and wagon seat cushion covers

Three-door and 5-door seat cushion covers

Attach the hog rings on the LH and RH side of the seat cushion cover to the foam pad.

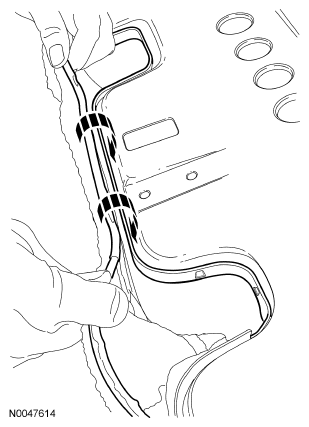

Fig 1: Locating Hog Rings
Courtesy of FORD MOTOR CO.

Early build seat cushion cover

Late build seat cushion cover

NOTE: There are detents in the lip of the cushion pan to lock the plastic edge of the seat cushion cover into the seat base.

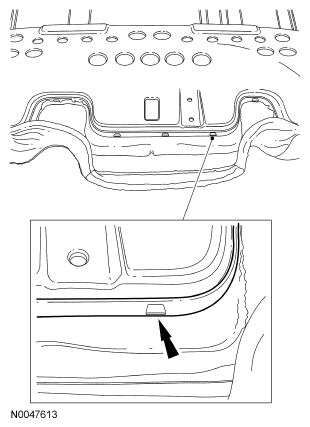

Fig 2: Locating Detents In Lip Of Cushion Pan

Courtesy of FORD MOTOR CO.

Attach the cushion frame to the seat cushion cover and foam pad.
Depress the seat cushion pan and foam pad downward to assist in attaching the trim cover.

Fig 3: Depressing Seat Cushion Pan And Foam Pad
Courtesy of FORD MOTOR CO.
Roll the seat cushion cover plastic retainer over on top of itself to clip into the lip of the cushion frame.

Fig 4: Rolling Seat Cushion Cover Plastic Retainer
Courtesy of FORD MOTOR CO.
Press the seat cushion cover plastic retainer firmly into place until an audible snap is heard indicating the plastic clip has engaged the detents in the cushion frame.

Fig 5: Pressing Seat Cushion Cover Plastic Retainer
Courtesy of FORD MOTOR CO.
Use a rubber mallet to tap the lip of the cushion frame causing the detents to lock the retainer in place.

Fig 6: Taping Lip Of Cushion Frame
Courtesy of FORD MOTOR CO.

All rear seat cushions

Install the rear seat cushion.
- Tighten to 25 Nm (18 lb-ft).
Make sure the safety belts and buckles are accessible to the occupants after installation.
