Seat Cushion - Front: Notes

SPECIAL TOOLS DESCRIPTION

G04654409Courtesy of FORD MOTOR CO.
 Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

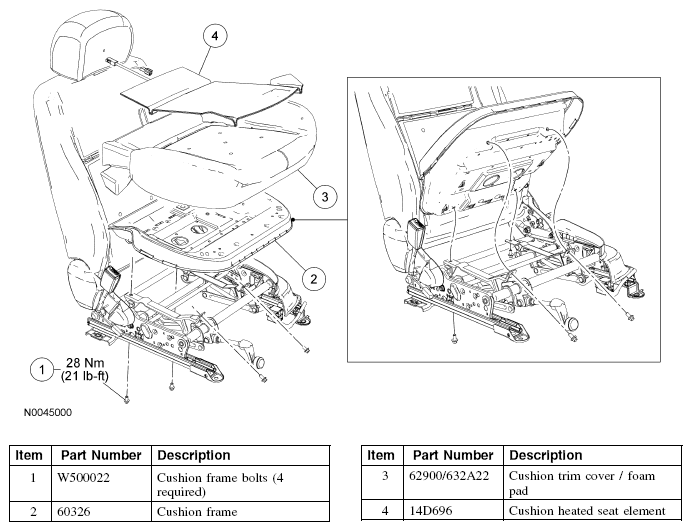

Fig 1: Exploded View Of Seat Cushion - Front, Driver With Torque Specification
G04654410Courtesy of FORD MOTOR CO.

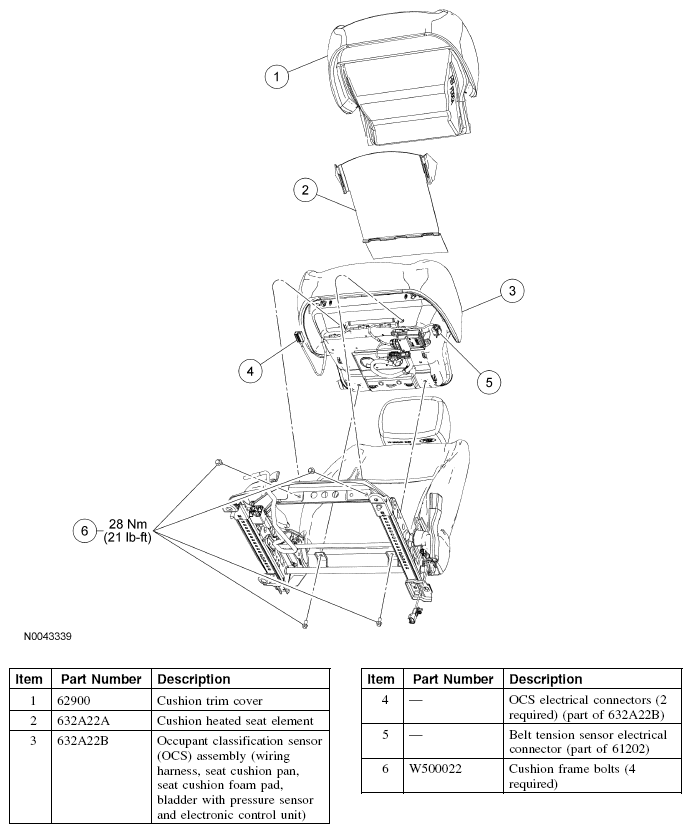

Fig 2: Exploded View Of Seat Cushion - Front, Passenger With Torque Specification
G04654411Courtesy of FORD MOTOR CO.
