Seat Backrest - Rear: Notes

NOTE: Three-door and 5-door backrest shown, 4-door and wagon similar.

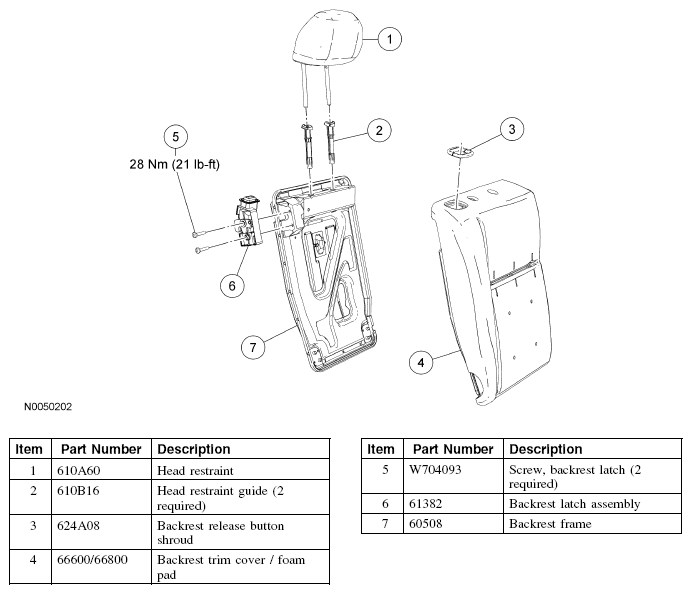

Fig 1: Exploded View Of Seat Backrest - Rear, Front View With Torque Specification

Courtesy of FORD MOTOR CO.

NOTE: Three-door and 5-door backrest shown, 4-door and wagon similar.

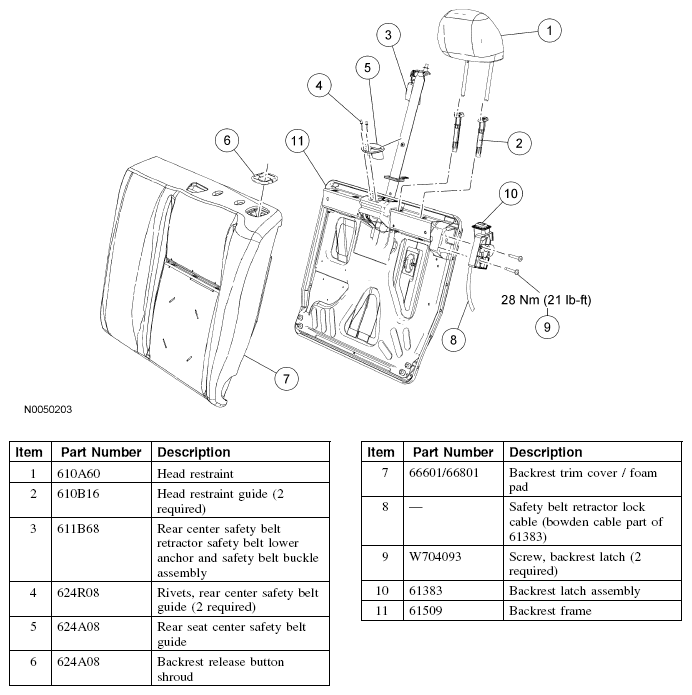

Fig 2: Exploded View Of Seat Backrest - Rear, Rear View With Torque Specification

Courtesy of FORD MOTOR CO.

NOTE: Three-door and 5-door backrest shown, wagon similar.

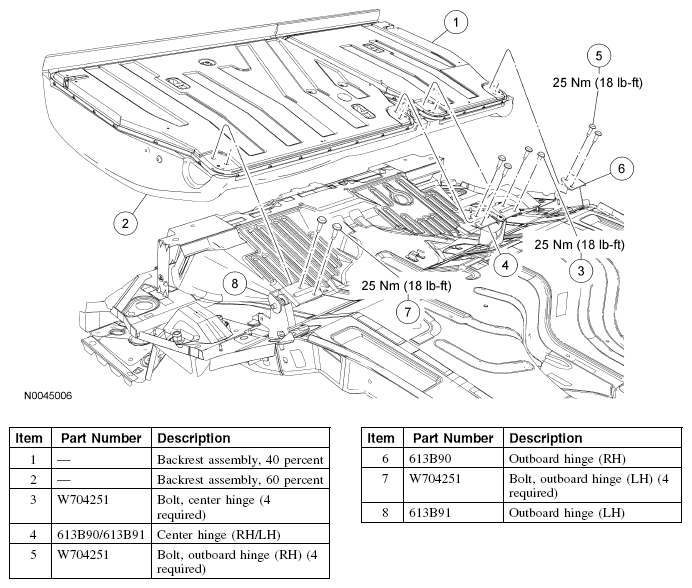

Fig 3: Exploded View Of Seat Backrest - Rear, 40 Percent, 3 And 5-Door With Torque Specification

Courtesy of FORD MOTOR CO.

NOTE: Three-door and 5-door backrest shown, wagon similar.

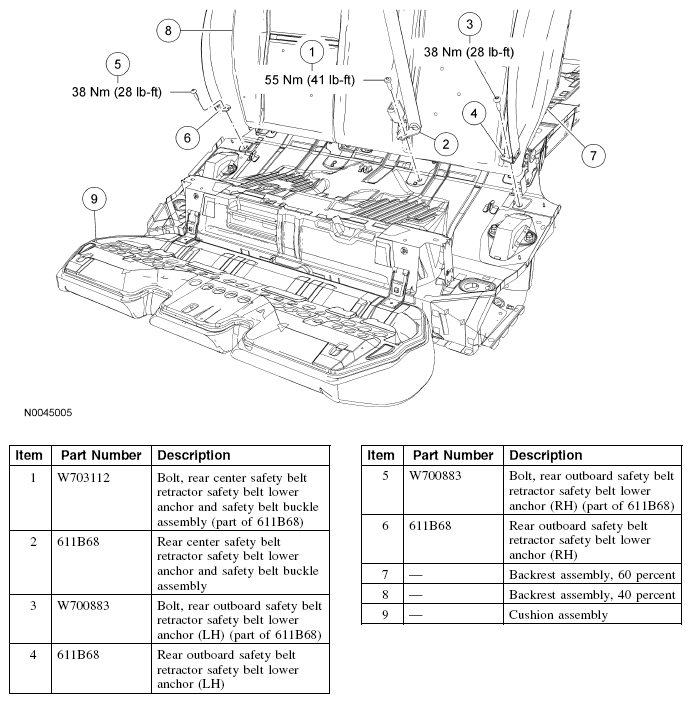

Fig 4: Exploded View Of Seat Backrest - Rear, 60 Percent, 3 And 5-Door With Torque Specification

Courtesy of FORD MOTOR CO.

NOTE: Sixty percent backrest shown, 40 percent similar.

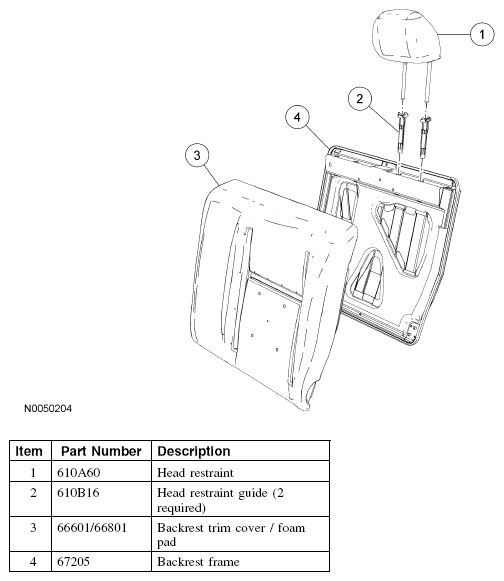

Fig 5: Exploded View Of Seat Backrest - Rear, 4-Door

Courtesy of FORD MOTOR CO.
