Bumper Cover - Rear, Wagon: Notes

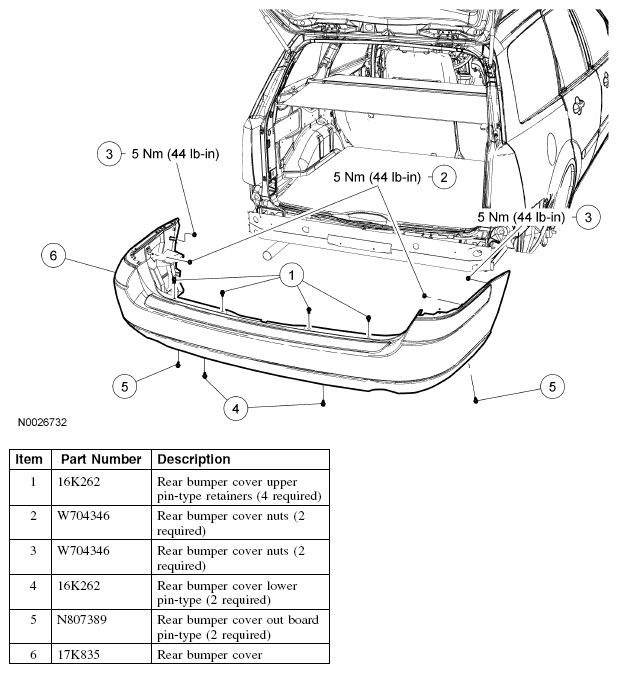

Fig 1: Identifying Bumper Cover - Rear, Wagon Components

G04654769

Courtesy of FORD MOTOR CO.
