Removal and Installation

Remove the 3 pin-type retainers and the radiator air deflector.
If equipped, disconnect the turn signal lamp electrical connectors.

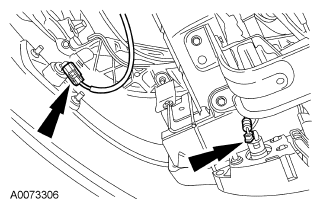

Fig 1: Locating Turn Signal Lamp Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the 2 radiator grille pin-type retainers and the radiator grille.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the radiator lower air deflector. For additional information, refer to FRONT END BODY PANELS .
Remove the 2 fender splash shield bolts.

Fig 2: Locating Fender Splash Shield Bolts
Courtesy of FORD MOTOR CO.
Remove the 6 front bumper cover bolts from the fender.
- To install, tighten to 5 Nm (44 lb-in).

  Fig 3: Locating Front Bumper Cover Bolts
  Courtesy of FORD MOTOR CO.
Disconnect the side turn signal lamp electrical connectors.
- If equipped, disconnect the fog lamp electrical connectors.

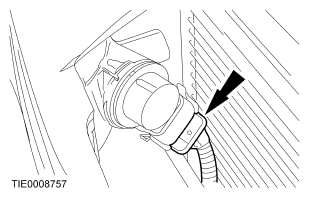

  Fig 4: Locating Fog Lamp Electrical Connectors
  Courtesy of FORD MOTOR CO.
Remove the 2 pin-type retainers and the bumper cover from the radiator grille opening panel.

Fig 5: Locating Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Remove the front bumper cover.
1. Lower the front bumper cover.
2. Disconnect the front bumper cover from the radiator splash shield.

  Fig 6: Removing Front Bumper Cover
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
